Same model may have multiple batches, images only for reference.

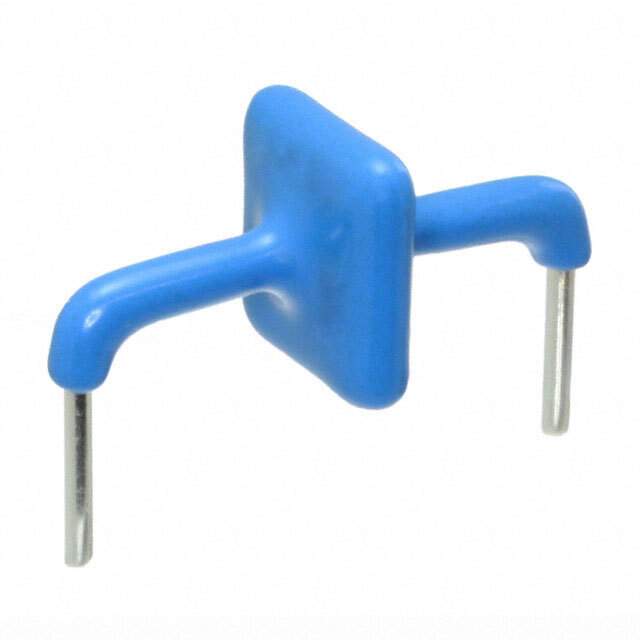

AK10-030C Real Image
Same model may have multiple batches, images only for reference.

AK10-030C

Part No AK10-030C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 30VWM 58VC AXIAL / 58V Clamp 10000A (10kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
Datasheet
AK10-030C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series AK10
Package Tray
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 30V
Voltage - Breakdown (Min) 32V
Voltage - Clamping (Max) @ Ipp 58V
Current - Peak Pulse (10/1000µs) 10000A (10kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 11000pF @ 10kHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package Axial
Base Product Number AK10
Standard Package 56
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 1339484-AK10-030C
Ultra Librarian 3D Model Ultra Librarian AK10-030C CAD Model

Description

This TVS diode from Littelfuse Inc. has a Win Source Part Number of 1339484-AK10-030C.

  • Series: AK10
  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 30V
  • Voltage - Breakdown (Min): 32V
  • Power Line Protection: No
  • Capacitance @ Frequency: 11000pF @ 10kHz
  • Current - Peak Pulse (10/1000µs): 10000A (10kA) (8/20μs)
  • Mounting Type: Through Hole
  • Package/Case: Axial, Right Angle Bend (24.15mm Center)
  • Temperature Range: -55°C to 125°C (TJ)
  • ECCN: EAR99
