Same model may have multiple batches, images only for reference.

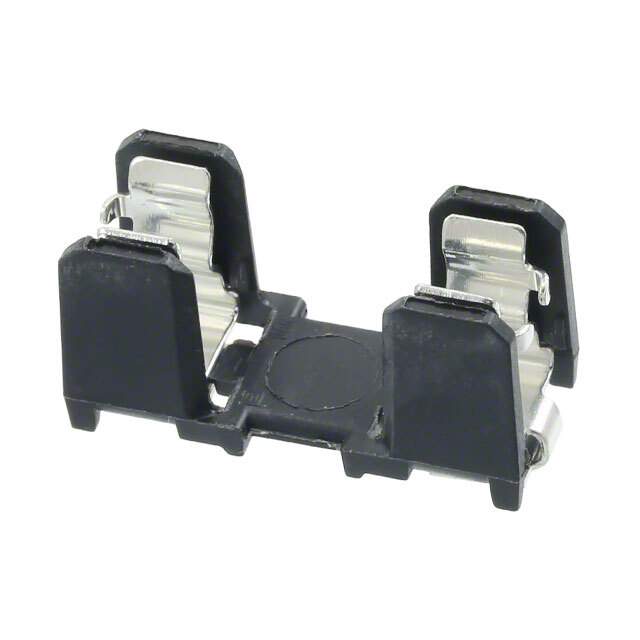

65800001109 Real Image
Same model may have multiple batches, images only for reference.

65800001109

Part No 65800001109
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE BLOK CARTRIDGE 250V 10A SMD / Fuse Block 10 A 250V 1 Circuit Cartridge Surface Mount
Datasheet
65800001109 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Mounting Surface Mount
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Current Rating (Amps) 10 A
For Use With/Related Products 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 250V
Termination Style J-Lead
Contact Material Copper Alloy
Contact Finish Tin
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Other Part Number WK6249DKR,65800001109-ND,6580000110-ND,WK6249TR,6580000110,WK6249CT
Standard Package 400
Win Source Part Number 1334781-65800001109
Ultra Librarian 3D Model Ultra Librarian 65800001109 CAD Model

Description

The Littelfuse Inc. 1334781-65800001109 is a circuit protection fuseholder designed for use with 5mm x 20mm cartridge fuses.

  • Type: Surface Mount Block
  • Termination Style: J-lead
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Voltage Rating: 250V
  • Current Rating: 10A
  • Circuits: One
  • Packaging: Reel - TR
  • Standard Package: 400
  • Dimensions: 0.197" Dia x 0.787" L (5mm x 20mm)
  • Compliance: RoHS3
