Same model may have multiple batches, images only for reference.

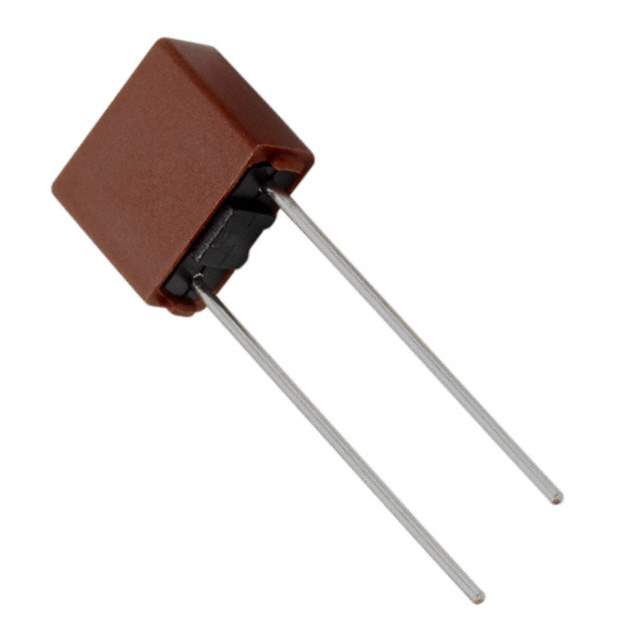

36913150440 Real Image
Same model may have multiple batches, images only for reference.

36913150440

Part No 36913150440
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 3.15A 300VAC RADIAL / 3.15 A 300 V AC DC Fuse Board Mount (Cartridge Style Excluded) Through Hole Radial, Box
Datasheet
36913150440 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series TE5® 369
Package Bulk
Mounting Type Through Hole
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 3.15 A
Voltage Rating - AC 300 V
Response Time Slow Blow
Package / Case Radial, Box
Breaking Capacity @ Rated Voltage 50A
Melting I2t 55
Approval Agency cULus, PSE/JET
Temperature Range - Operating -40°C ~ 85°C
Size / Dimension 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm)
DC Cold Resistance 0.017 Ohms
Standard Package 1,400
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 1349752-36913150440
Ultra Librarian 3D Model Ultra Librarian 36913150440 CAD Model

Description

The TE5® 369 series slow blow board mount fuses from Littelfuse Inc. are designed for circuit protection. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Voltage Rating: 300 V AC
  • Breaking Capacity: 50A @ Rated Voltage
  • DC Cold Resistance: 0.017 Ohms
  • Response Time: Slow Blow
  • Package Size: 0.335" L x 0.157" W x 0.315" H (8.50mm x 4.00mm x 8.00mm)
  • Mounting Type: Through Hole
  • Package: Radial, Box
  • Operating Temperature: -40°C ~ 85°C
  • Approvals: cULus and PSE/JET
  • REACH: Unaffected
