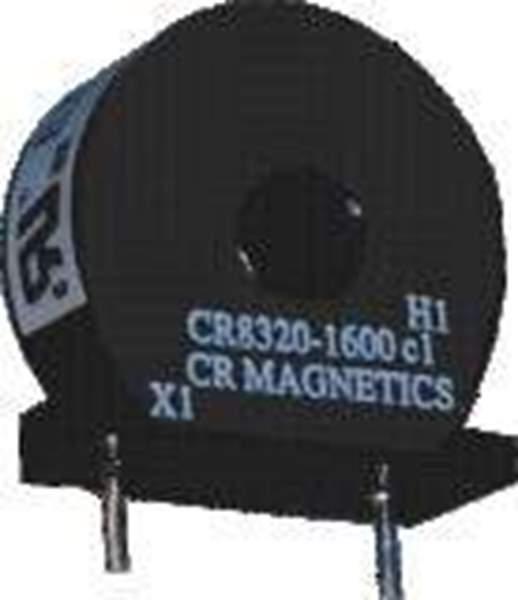

CR8320-1600 Real Image
Same model may have multiple batches, images only for reference.

CR8320-1600

Part No CR8320-1600
Manufacturer CR Magnetics Inc.
Catalog Current Sense Transformers
Description General Purpose Vertical PCB Current Transformer, Solid Core, 1600 Turns, 1.8 Vmax RMS, 10 Arms Maximum Input Current Range, 0.22" ID
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Current Sense Transformers
Mfr CR Magnetics Inc.
Series -
Win Source Part Number 1384710-CR8320-1600
Package Bulk
Product Status Active
Frequency Range 20Hz ~ 1kHz
Type Non-Invasive (Solid Core)
Current Rating (Amps) 10A
Current Ratio 1600:1
DC Resistance (DCR) 95Ohm
Mounting Type Through Hole
Size / Dimension 0.764" L x 0.323" W (19.40mm x 8.20mm)
Height - Seated (Max) 0.768" (19.50mm)
Termination Style PC Pin
Ultra Librarian 3D Model Ultra Librarian CR8320-1600 CAD Model
