A3-20DA-2SV(71) Hirose Electric Co Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

A3-20DA-2SV(71)

Part No A3-20DA-2SV(71)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN RCPT 20POS 0.079 GOLD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.079" (2.00mm)
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insulation Color Brown
Insulation Height 0.165" (4.20mm)
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 5.1mm, 6mm
Current Rating (Amps) 1A
Voltage Rating 200VAC
Package Tube
Supply and Demand Status Limited
Win Source Part Number 1627593-A3-20DA-2SV(71)
Ultra Librarian 3D Model Ultra Librarian A3-20DA-2SV(71) CAD Model

Description

N

You May Also Be Interested in

89882-310LF Amphenol – Price, Stock & Datasheet
89882-310LF
Amphenol
CONN RCPT 10POS 0.1 GOLD PCB R/A
Need more? Email Us
794584-1 TE Connectivity – Price, Stock & Datasheet
794584-1
TE Connectivity
CONN HDR 5POS 0.25 TIN PCB
Need more? Email Us
2102061-3 TE Connectivity – Price, Stock & Datasheet
2102061-3
TE Connectivity
CONN RCPT 114POS 0.05 GOLD SMD
Need more? Email Us
794287-1 TE Connectivity – Price, Stock & Datasheet
794287-1
TE Connectivity
CONN HDR 4POS 0.2 TIN PCB
Need more? Email Us
Picture of 71991-316LF
71991-316LF
Amphenol
CONN RCPT 32POS 0.1 GOLD PCB
Need more? Email Us
91615-303ALF Amphenol – Price, Stock & Datasheet
91615-303ALF
Amphenol

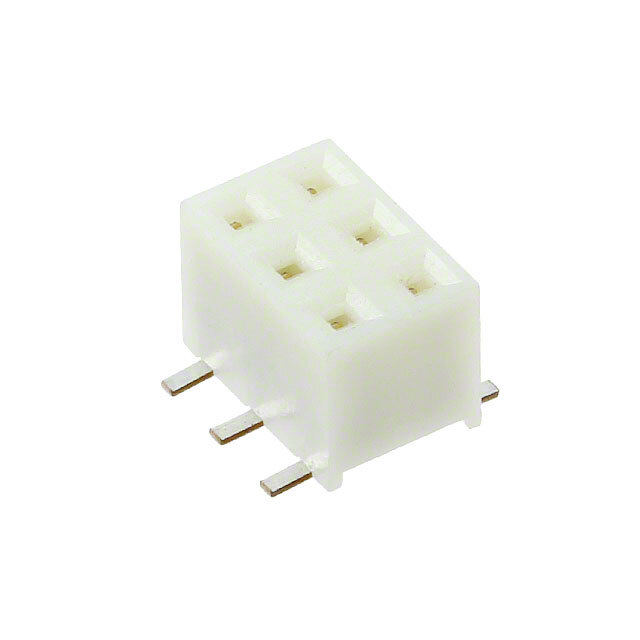

CONN RCPT 6POS 0.1 GOLD SMD
