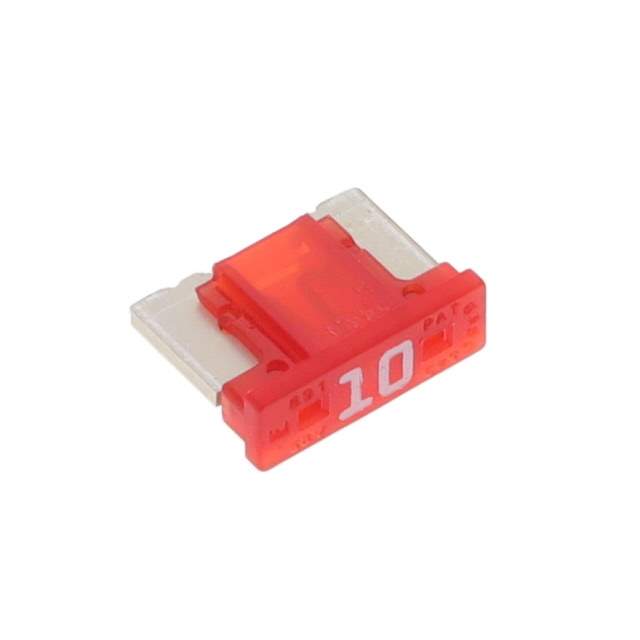

0891010.NXWS Real Image
Same model may have multiple batches, images only for reference.

0891010.NXWS

Part No 0891010.NXWS
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 10A 58VDC BLADE MINI / 10 A AC 58 V DC Fuse Automotive Holder Blade, Miniature (Low Profile)
Datasheet
0891010.NXWS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Holder
Fuse Type Automotive
Current Rating (Amps) 10 A
Voltage Rating - DC 58 V
Case / Package Blade, Miniature (Low Profile)
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 102
Temperature Range - Operating -40°C ~ 125°C
Color Red
Size / Dimension 0.429" L x 0.150" W x 0.344" H (10.90mm x 3.81mm x 8.73mm)
DC Cold Resistance 7.59 Ohms
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number F11971,-0891010.NXWS,0891010.NXWS-ND
Standard Package 5,000
Win Source Part Number 1334703-0891010.NXWS
Ultra Librarian 3D Model Ultra Librarian 0891010.NXWS CAD Model

Description

This Littelfuse Inc. automotive fuse is a blade, miniature (low profile) type that comes in red color.

  • Manufacturer: Littelfuse Inc.
  • Type: Automotive fuse, blade, miniature (low profile)
  • Color: Red
  • Voltage Rating: 58 V DC
  • Current Rating: 10 A
  • Breaking Capacity: 1kA @ rated voltage
  • DC Cold Resistance: 7.59 Ohms
  • Size/Dimension: 0.429” L x 0.150” W x 0.344” H (10.90mm x 3.81mm x 8.73mm)
  • Standard Package: 5,000
  • Mounting: Holder
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • ROHS3 Compliant: Yes
