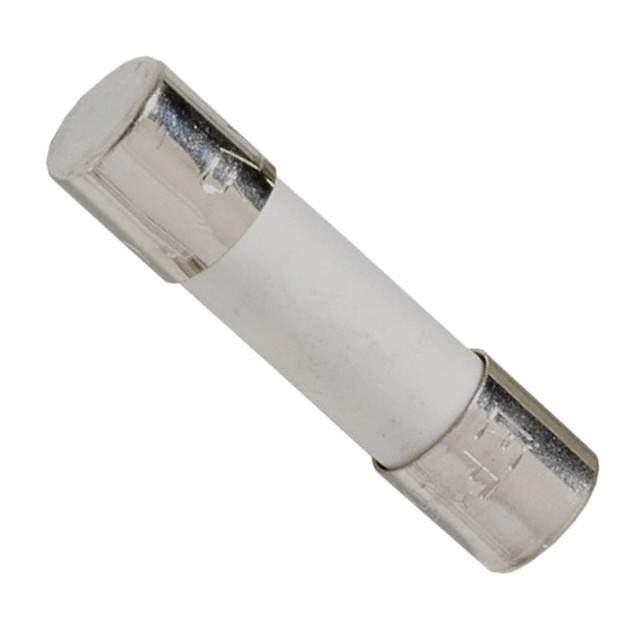

0477005.MXP Real Image
Same model may have multiple batches, images only for reference.

0477005.MXP

Part No 0477005.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE CERM 5A 500VAC 400VDC 5X20 / 5 A 500 V AC 400 V DC Fuse Cartridge, Ceramic Holder 5mm x 20mm
Datasheet
0477005.MXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 5 A
Voltage Rating - AC 500 V
Voltage Rating - DC 400 V
Response Time Slow Blow
Case / Package 5mm x 20mm
Breaking Capacity @ Rated Voltage 100A AC, 500A DC
Melting I2t 76.5
Approval Agency cULus, PSE, SEMKO
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0137 Ohms
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Part Number -1024-0477005.MXP,F2990,0477005MXP,477005
Standard Package 1,000
Win Source Part Number 1334709-0477005.MXP
Ultra Librarian 3D Model Ultra Librarian 0477005.MXP CAD Model

Description

The Littelfuse Inc. 1334709-0477005.MXP is a ceramic cartridge fuse designed for circuit protection.

  • Manufacturer: Littelfuse Inc.
  • Product Number: 1334709-0477005.MXP
  • Type: Ceramic cartridge fuse
  • Response Time: Slow blow
  • Breaking Capacity: 100A AC and 500A DC @ rated voltage
  • DC Cold Resistance: 0.0137 Ohms
  • Melting I2t: 76.5
  • Voltage Rating: 500V AC and 400V DC
  • Package Size: 5mm x 20mm
  • Packaging: Bulk
  • Standard Package: 1,000
  • Approval: cULus, PSE, and SEMKO
  • ROHS3 Compliant: Yes
  • Temperature Range: -55°C to 125°C
