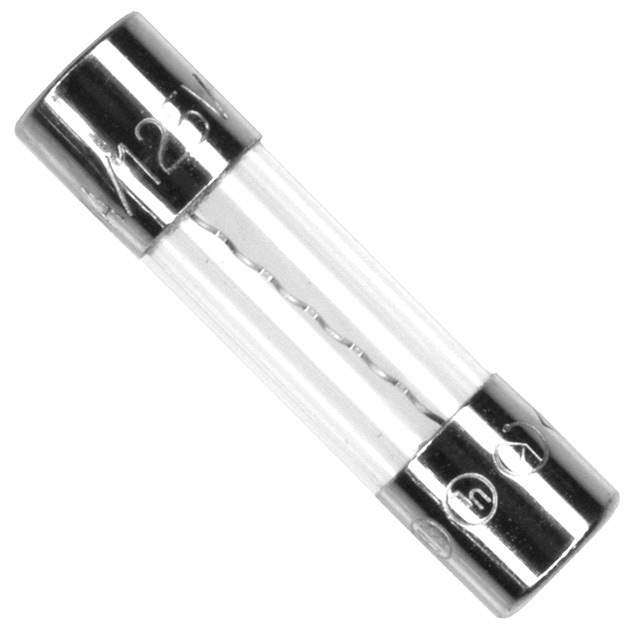

0233002.MXP Real Image
Same model may have multiple batches, images only for reference.

0233002.MXP

Part No 0233002.MXP
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 2A 125VAC 5X20MM / 2 A 125 V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Manufacturer Littelfuse Inc.
Packaging Bulk
Mounting Holder
Fuse Type Cartridge, Glass
Current Rating (Amps) 2 A
Voltage Rating - AC 125 V
Response Time Medium Blow
Case / Package 5mm x 20mm
Breaking Capacity @ Rated Voltage 10kA
Melting I2t 9.97
Approval Agency CE, CSA, KC, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0684 Ohms
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0020
Other Part Number 0233002MXP,0233002.XP,0233002XP,233002,233002.P,0233002.MXP-ND,-1024-0233002.MXP,F3626
Standard Package 1,000
Win Source Part Number 1334658-0233002.MXP
Ultra Librarian 3D Model Ultra Librarian 0233002.MXP CAD Model

Description

Littelfuse Inc. presents a medium-blow, glass cartridge fuse with a voltage rating of 125VAC and a current rating of 2A.

  • Manufacturer: Littelfuse Inc.
  • Type: Medium-Blow, Glass Cartridge
  • Voltage Rating: 125VAC
  • Current Rating: 2A
  • DC Cold Resistance: 0.0684 Ohms
  • Breaking Capacity: 10kA at the rated voltage
  • Standard Package: 1,000
  • Mounting: Holder
  • RoHS: RoHS3 compliant
  • ECCN: EAR99
  • Category: circuit protection>fuses
