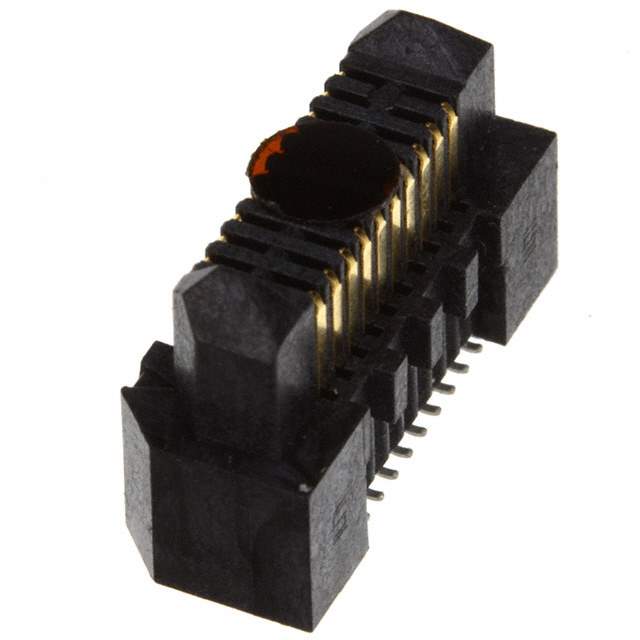

ERM8-010-05.0-S-DV-K-TR

Name: ERM8-010-05.0-S-DV-K-TR
Brand: Samtec Inc.
SKU: 1057744
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ERM8-010-05.0-S-DV-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Center Strip Contacts Surface Mount Gold
Datasheet	ERM8-010-05.0-S-DV-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Edge Rate™ ERM8
Package	Tape & Reel
Connector Type	Header, Center Strip Contacts
Number of Positions	20
Pitch	0.031" (0.80mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	10mm, 12mm, 15mm
Height Above Board	0.351" (8.91mm)
Base Product Number	ERM8-010
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	ERM8010050SDVKTR,SAM8610TR,ERM8-010-05.0-S-DV-K-FR,SAM8610CT,SAM8610DKR
Standard Package	325
Win Source Part Number	1057744-ERM8-010-05.0-S-DV-K-TR
Ultra Librarian 3D Model	Ultra Librarian ERM8-010-05.0-S-DV-K-TR CAD Model

Alternative Products

Description

The ERM8-010-05.0-S-DV-K-TR is a rectangular connector designed for use in board-to-board applications.

Number of Positions: 20
Pitch: 0.031" (0.80mm)
Connector Type: Header
Contact Type: Center Strip
Number of Rows: 2
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Packaging: Tape and Reel
Mated Stacking Heights: 10mm, 12mm, and 15mm
Temperature Range: -40°C to 85°C
