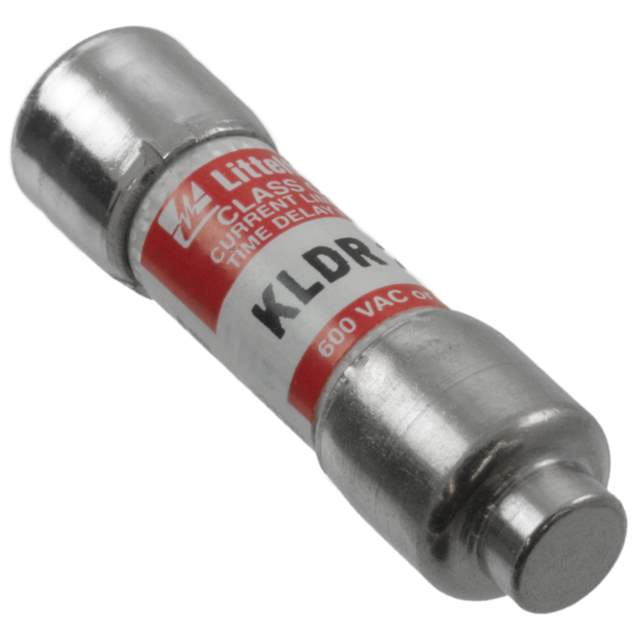

KLDR020.HXP Real Image1 KLDR020.HXP Real Image2
Same model may have multiple batches, images only for reference.
KLDR020.HXP Real Image1 KLDR020.HXP Real Image2
KLDR020.HXP Real Image1 KLDR020.HXP Real Image2
Same model may have multiple batches, images only for reference.

KLDR020.HXP

Part No KLDR020.HXP
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 20A 600VAC/300VDC / 20A 600 V AC 300 V DC Fuse Cartridge Requires Holder
Datasheet
KLDR020.HXP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD® KLDR
Package Bulk
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 20A
Voltage Rating - AC 600 V
Voltage Rating - DC 300 V
Response Time Slow Blow
Applications Transformer Protection
Features -
Class CC
Approval Agency CE, CSA, UL
Temperature Range - Operating -
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Standard Package 100 pcs
Win Source Part Number 1382422-KLDR020.HXP
Ultra Librarian 3D Model Ultra Librarian KLDR020.HXP CAD Model

Description

The KLDR020.HXP is a cartridge fuse from Littelfuse Inc. It is part of the POWR-GARD KLDR series and is designed for circuit protection applications, specifically for transformer protection. This fuse has a voltage rating of 600V AC and 300V DC, with a slow blow response time.

  • Voltage Rating: 600V AC, 300V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 200kA AC, 20kA DC @ rated voltage
  • Package: Bulk
  • Package Size: 100 pieces
  • Mounting: Requires a holder
  • Class: Class CC
  • Approval: CE, CSA, UL
