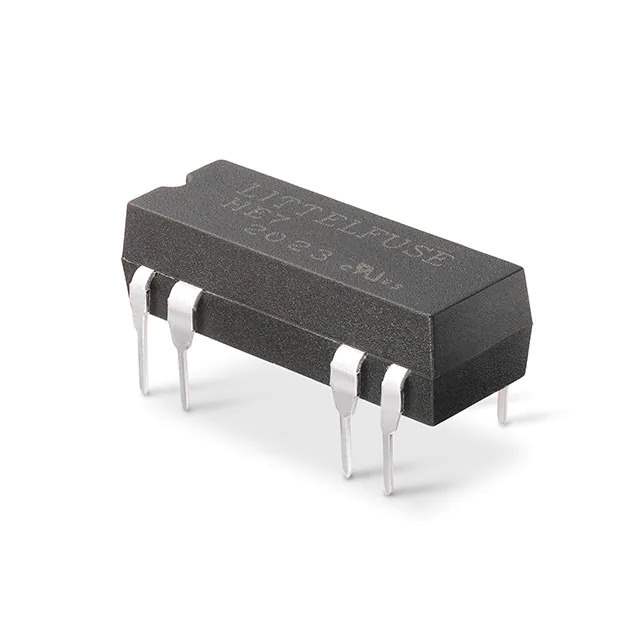

HE722A2410 Real Image
Same model may have multiple batches, images only for reference.

HE722A2410

Part No HE722A2410
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED DPST 500MA 24V
Datasheet
HE722A2410 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Littelfuse Inc.
Series HE700
Package Tube
Product Status Active
Mounting Type Through Hole
Coil Voltage 24VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VDC - Max
Coil Current 11.1 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 16 VDC
Must Release Voltage 2 VDC
Operate Time 1 ms
Release Time 1 ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 2.15 kOhms
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
California Prop 65 Warning Information
Win Source Part Number 848359-HE722A2410
Ultra Librarian 3D Model Ultra Librarian HE722A2410 CAD Model

Description

The 848359-HE722A2410 is a DPST-NO reed relay from Littelfuse Inc.

  • Series: HE700
  • Termination Style: PC Pin
  • Diode: Yes
  • Package: Tube
  • Coil Resistance: 2.15 kOhms
  • Coil Current: 11.1 mA
  • Operate Time: 1 ms
  • Release Time: 1 ms
  • Coil Voltage: 24VDC
  • Contact Rating: 500 mA
  • Switching Voltage: 200VDC max
  • Mounting: Through-Hole
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
  • Approvals: CE, CSA, K-MARK, PSE, UL
