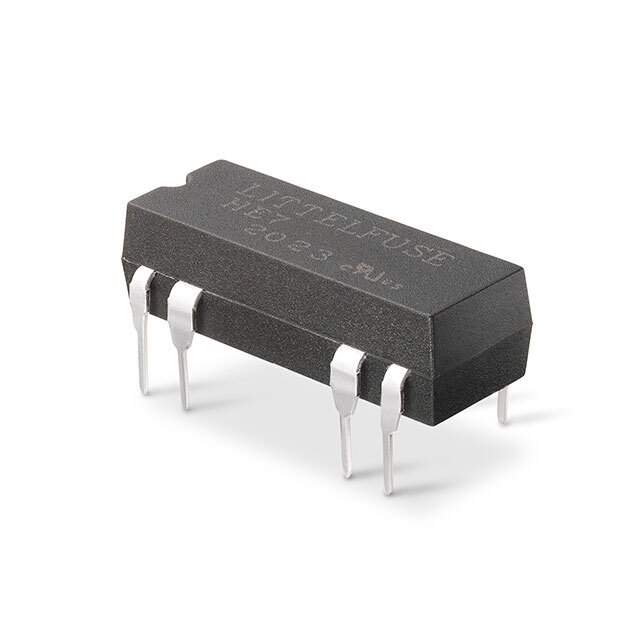

HE721C2410 Real Image
Same model may have multiple batches, images only for reference.

HE721C2410

Part No HE721C2410
Manufacturer Littelfuse Inc.
Catalog Reed Relays
Description RELAY REED SPDT 250MA 24V / D.I.L. Relay Features and Benefits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tube
Mounting Style Through Hole
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 250mA
Switching Voltage 175VDC - Max
Coil Current 12mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 16 VDC
Must Release Voltage 2 VDC
Operate Time 3ms
Release Time 3ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 2 kOhms
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811317-HE721C2410
Ultra Librarian 3D Model Ultra Librarian HE721C2410 CAD Model

Description

The Littelfuse Inc. HE721C2410 is a PC pin through-hole SPDT (1 Form C) contact form diode with a non-latching coil type.

  • Coil Voltage: 24VDC
  • Coil Resistance: 2 kOhms
  • Coil Current: 12mA
  • Contact Rating (Current): 250mA
  • Switching Voltage: 175VDC - Max
  • Operating Temperature: -40°C to 85°C
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (unlimited)
  • Must Operate Voltage: 16 VDC
  • Must Release Voltage: 2 VDC
