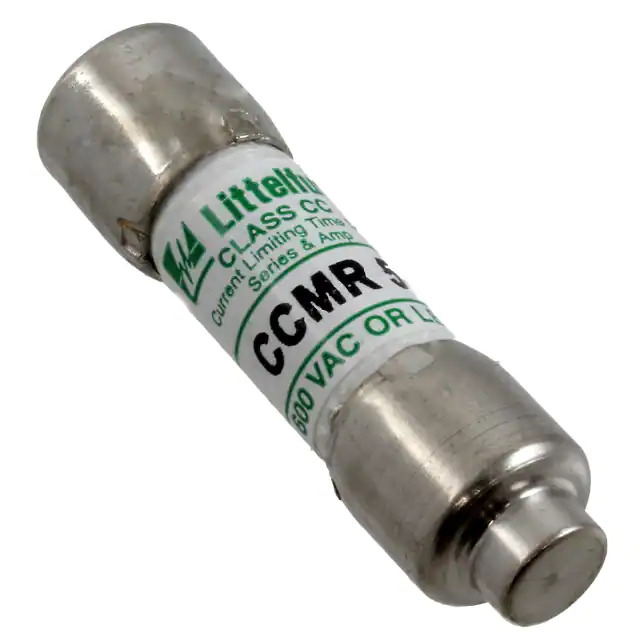

CCMR005.T Littelfuse Inc.
Same model may have multiple batches, images only for reference.

CCMR005.T

Part No CCMR005.T
Manufacturer Littelfuse Inc.
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 5A 600VAC/250VDC
Datasheet
CCMR005.T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Electrical, Specialty Fuses
Mfr Littelfuse Inc.
Series POWR-GARD®, POWR-PRO® CCMR
Package Bulk
Product Status Obsolete
Mounting Type Requires Holder
Fuse Type Cartridge
Current Rating (Amps) 5A
Voltage Rating - AC 600 V
Voltage Rating - DC 250 V
Response Time Slow Blow
Applications Motor Protection
Features -
Class CC
Approval Agency CE, UL
Breaking Capacity @ Rated Voltage 200kA AC, 20kA DC
Package / Case 5AG, 10mm x 38mm (Midget)
Size / Dimension 0.406" Dia x 1.500" L (10.30mm x 38.10mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1378130-CCMR005.T
Ultra Librarian 3D Model Ultra Librarian CCMR005.T CAD Model

Description

The 1378130-CCMR005.T is an electrical specialty fuse component manufactured by Littelfuse Inc.

  • Series: POWR-GARD®, POWR-PRO® CCMR
  • Package: Bulk
  • Package/Case: 5AG, 10mm x 38mm (Midget)
  • Mounting Type: Holder Required
  • Size: 0.406" diameter x 1.500" length (10.30mm x 38.10mm)
  • Current Rating: 5A
  • AC Voltage Rating: 600V
  • DC Voltage Rating: 250V
  • Response Time: Slow Blow
  • Breaking Capacity (AC): 200kA
  • Breaking Capacity (DC): 20kA
  • Application: Motor Protection
