Same model may have multiple batches, images only for reference.

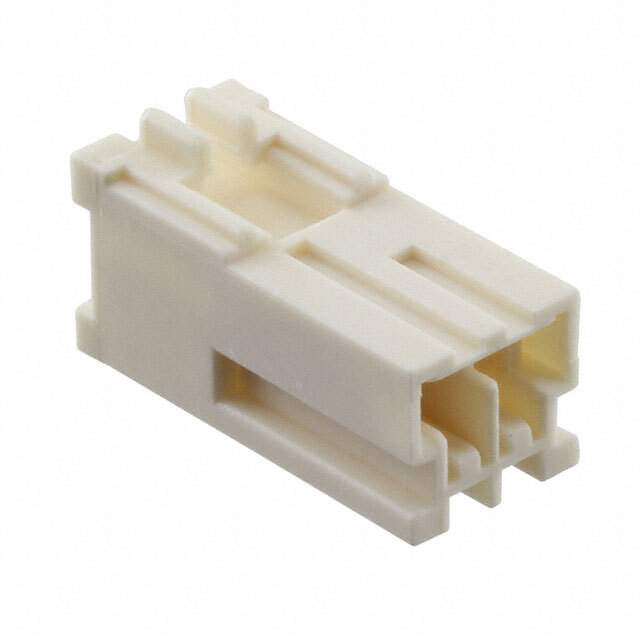

5-316086-1 Real Image
Same model may have multiple batches, images only for reference.

5-316086-1

Part No 5-316086-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description 2.5 SIGNAL D/LOCK CAP HSG 2P(GWT
Datasheet
5-316086-1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Signal Double Lock
Packaging Bulk
Connector Type Receptacle
Contact Type Tab
Number of Positions 2
Pitch 0.098" (2.50mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Natural
Note Contacts Not Included
Win Source Part Number 763139-5-316086-1
Popularity Medium
Supply and Demand Status Limited
Family Name 316086
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin China
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 5-316086-1 CAD Model

Description

The 763139-5-316086-1 is a receptacle connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 2
  • Pitch: 0.098" (2.50mm)
  • Color: Natural
  • Mounting Type: Free Hanging (In-Line)
  • Series: Signal Double Lock
  • Packaging: Bulk
  • ECCN: EAR99
  • Halogen Free: No
  • Country of Origin: China
  • Estimated EOL Date: 2028
  • Other Series: Signal Double Lock
