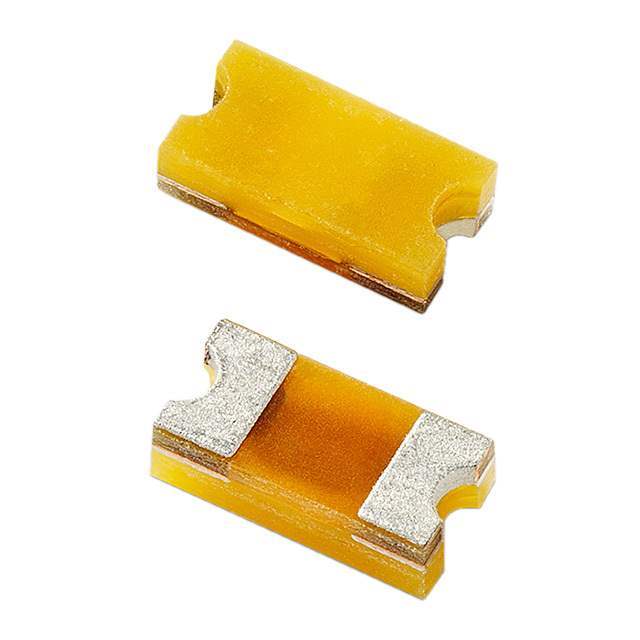

Same model may have multiple batches, images only for reference.
AXGD10603NR Littelfuse Inc.
Same model may have multiple batches, images only for reference.

AXGD10603NR

Part No AXGD10603NR
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 40VC 0603
Datasheet
AXGD10603NR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection> Transient Voltage >Suppressors (TVS) TVS Diodes
Mfr Littelfuse Inc.
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Zener
Bidirectional Channels 1
Voltage - Clamping (Max) @ Ipp 40V (Typ)
Power Line Protection No
Capacitance @ Frequency 0.09pF @ 250MHz
Operating Temperature -65°C ~ 125°C
Ultra Librarian 3D Model Ultra Librarian AXGD10603NR CAD Model

Description

XTREME-GUARDTM ESD Suppressors protect sensitive electronic equipment against extreme ESD conditions, in very small 0402 and 0603 footprints. This product series is specifically designed to suppress fast-rising ESD transients up to 30kV while adding virtually no capacitance to the circuit, which helps preserve signal integrity and minimize data loss. It is RoHS compliant, halogen free and Pb free ESD Suppressor.
