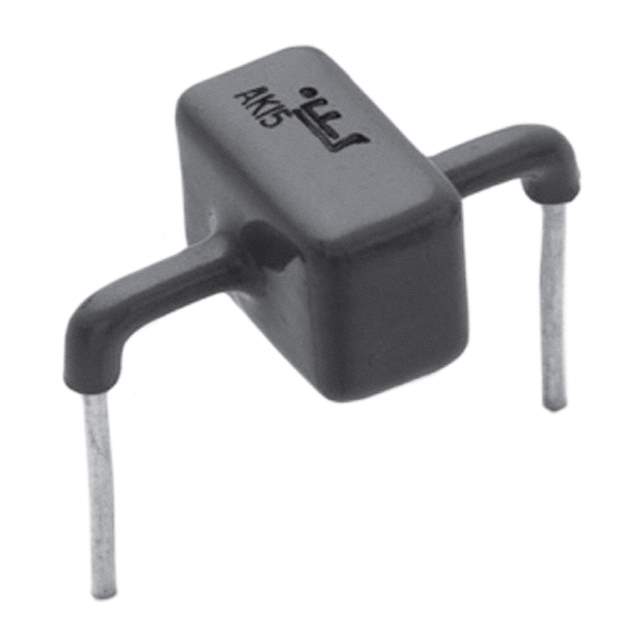

AK15-076C Real Image
Same model may have multiple batches, images only for reference.

AK15-076C

Part No AK15-076C
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 76VWM 150VC AXIAL / 150V Clamp 15000A (15kA) (8/20µs) Ipp Tvs Diode Through Hole Axial
Datasheet
AK15-076C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Littelfuse Inc.
Series AK15
Package Tray
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 76V
Voltage - Breakdown (Min) 85V
Voltage - Clamping (Max) @ Ipp 150V
Current - Peak Pulse (10/1000µs) 15000A (15kA) (8/20µs)
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 10000pF @ 10kHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Through Hole
Package / Case Axial, Right Angle Bend (24.15mm Center)
Supplier Device Package Axial
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names -AK15-076C,AK15-076C-ND,AK15076C,F6590
Standard Package 56
Win Source Part Number 1066529-AK15-076C
Ultra Librarian 3D Model Ultra Librarian AK15-076C CAD Model

Description

The AK15 series Zener diode provides circuit protection for general purpose applications manufactured by Littelfuse Inc..

  • Voltage Reverse Standoff: 76V
  • Voltage Breakdown: 85V
  • Clamping Voltage @ Maximum Ipp: 150V
  • Capacitance @ Frequency: 10000pF @ 10kHz
  • Peak Pulse Power: Not Specified
  • Current Peak Pulse: 15000A (15kA) (8/20μs)
  • Mounting Type: Through Hole
  • Package/Case: Axial, Right Angle Bend (24.15mm center)
  • Operating Temperature: -55°C to 125°C (TJ)
  • Available Alternative Parts: 15KPA85CA, 15KPA78CA, 15KPA90CA, SMCJ7.5CA, PTVS10-076C-TH, and SMAJ78CA
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
