Same model may have multiple batches, images only for reference.

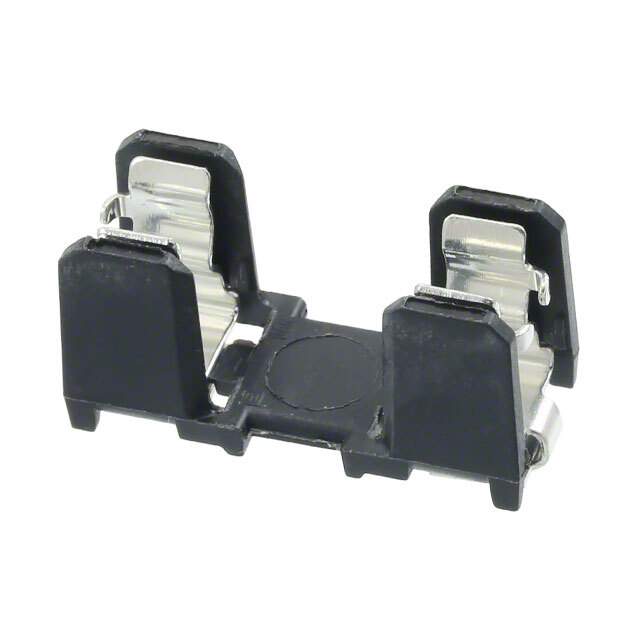

65800001009 Real Image
Same model may have multiple batches, images only for reference.

65800001009

Part No 65800001009
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE BLOK CARTRIDGE 250V 10A SMD
Datasheet
65800001009 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 658
Package Bulk
Product Status Active
Mounting Type Surface Mount
Fuse Size 0.197" Dia x 0.787" L (5mm x 20mm)
Current Rating (Amps) 10 A
For Use With/Related Products 5mm x 20mm
Fuse Type Cartridge
Fuseholder Type Block
Number of Circuits 1
Voltage 250V
Termination Style J-Lead
Contact Material Copper Alloy
Contact Finish Tin
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Win Source Part Number 856918-65800001009
Ultra Librarian 3D Model Ultra Librarian 65800001009 CAD Model

Description

The 856918-65800001009 is a circuit protection fuseholder from Littelfuse Inc.

  • Series: 658
  • Termination Style: J-Lead
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Fuse Size: 5mm x 20mm
  • Fuse Type: Cartridge
  • Fuseholder Type: Block
  • Circuits: 1
  • Voltage Rating: 250V
  • Mounting Type: Surface Mountable
  • Current Rating: 10A
  • Standard Package: 100 pieces
  • Application: Circuit Protection
  • Product Status: Active
