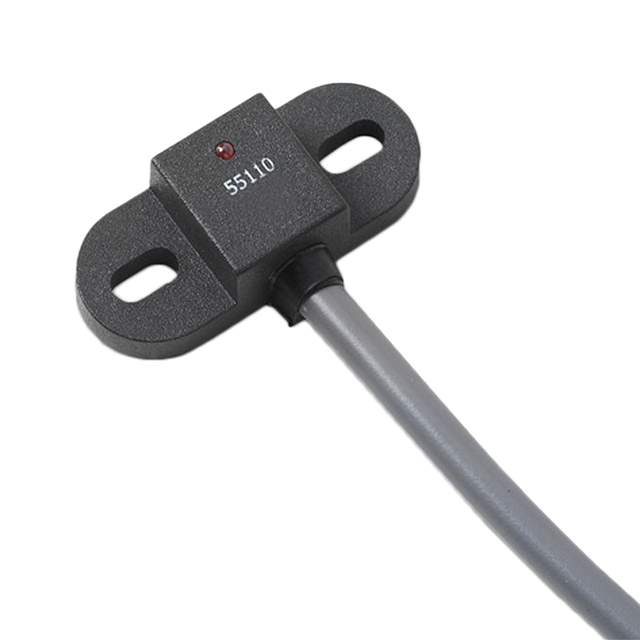

55110-3M-02-A Real Image
Same model may have multiple batches, images only for reference.

55110-3M-02-A

Part No 55110-3M-02-A
Manufacturer Littelfuse Inc.
Catalog Magnetic Sensors - Position, Proximity, Speed (Modules)
Description SENSOR HALL DIGITAL WIRE LEADS /
Datasheet
55110-3M-02-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Position, Proximity, Speed (Modules) - Industrial
Mfr Littelfuse Inc.
Series 55100
Package Box
Product Status Obsolete
Type Hall Effect Switch
Output Type Digital
Actuator Material Magnet, South Pole
Termination Style Wire Leads
Frequency 10 kHz
Voltage - Supply 3.8V ~ 24V
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case Flange Mount
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Other Names -55110-3M-02-A
Standard Package 100
Win Source Part Number 1027403-55110-3M-02-A
Ultra Librarian 3D Model Ultra Librarian 55110-3M-02-A CAD Model

Description

This Hall Effect Switch is a type of magnetic sensor that belongs to the Sensors, Transducers category. Bold the product name Hall Effect Switch.

  • Category: Sensors, Transducers
  • Win Source Part Number: 1027403-55110-3M-02-A
  • Series: 55100 series
  • Termination Style: wire leads
  • Package: box package
  • Actuator Material: magnet with a south pole
  • Standard Package: 100
  • Frequency: 10kHz
  • Output Type: digital
  • Voltage Supply: 3.8V ~ 24V
  • Package/Case: flange mount
  • Temperature Range: -40 degrees Celsius to 85 degrees Celsius
  • Product Status: now obsolete
