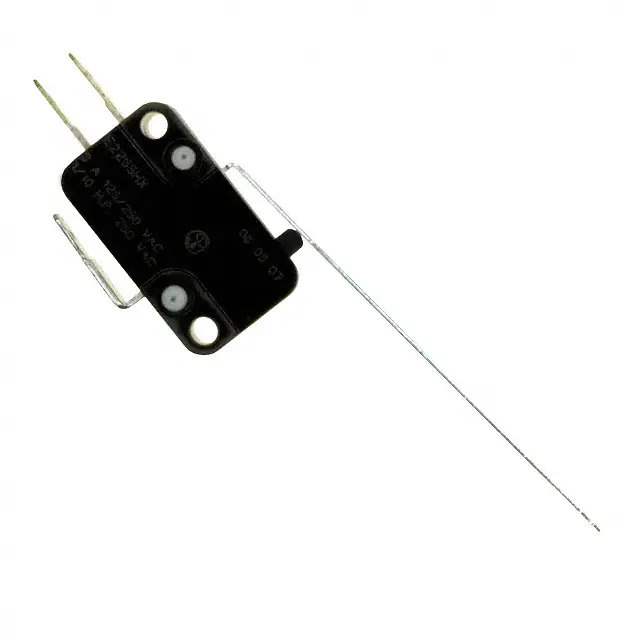

E22-55HX Real Image
Same model may have multiple batches, images only for reference.

E22-55HX

Part No E22-55HX
Manufacturer ZF Electronics
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Limit Switches
Mfr ZF Electronics
Series E
Package Bulk
Product Status Obsolete
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC), 100mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Lever, Straight
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 4.000gf
Operating Position 0.600" (15.2mm)
Pretravel 0.300" (7.6mm)
Differential Travel 0.065" (1.7mm)
Overtravel 0.187" (4.75mm)
Temperature Range - Operating -40°C ~ 85°C
Electrical Life 6,000 Cycles
Standard Package 960 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 866385-E22-55HX
Ultra Librarian 3D Model Ultra Librarian E22-55HX CAD Model

Description

The ZF Electronics Limit Switch is a high-quality switch designed for various applications.

  • Voltage Rating (AC): 125V AC
  • Voltage Rating (DC): 125V DC
  • Circuit Configuration: SPDT
  • Switch Function: On-Mom
  • Actuator Type: Lever
  • Termination Style: Quick Connect
  • Operating Force: 4.000gf
  • Temperature Range: -40°C to 85°C
  • Mounting: Chassis Mountable
  • Package: Bulk
  • Product Status: Obsolete
  • Manufacturer: ZF Electronics
