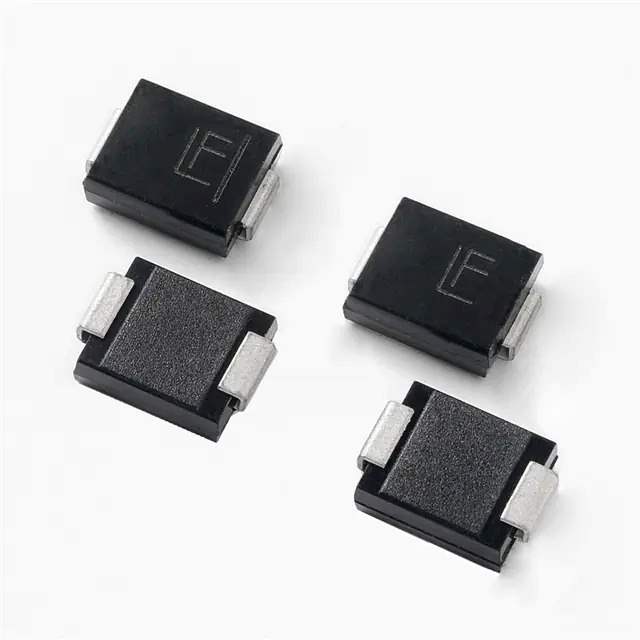

3.0SMCJ24CA Real Image
Same model may have multiple batches, images only for reference.

3.0SMCJ24CA

Part No 3.0SMCJ24CA
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIOD 3000W DO-214AB 24V
Datasheet
3.0SMCJ24CA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series 3.0SMCJ
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 24V
Voltage - Breakdown (Min) 26.7V
Voltage - Clamping (Max) @ Ipp 38.9V
Current - Peak Pulse (10/1000µs) 77.1A
Power - Peak Pulse 3000W (3kW)
Power Line Protection No
Applications Telecom
Temperature Range - Operating -65°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMCJ)
Base Product Number 3.0SMCJ
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 545237-3.0SMCJ24CA
Ultra Librarian 3D Model Ultra Librarian 3.0SMCJ24CA CAD Model

Description

The 3.0SMCJ24CA is a Zener-type TVS diode designed for circuit protection against transient voltage events in telecom applications.

  • Voltage Reverse Standoff: 24V
  • Voltage Breakdown: 26.7V
  • Power Peak Pulse: 3000W (3kW)
  • Type: Bidirectional TVS diode
  • Mounting Type: Surface Mountable
  • Package: DO-214AB (SMC)
  • Operating Temperature Range: -65°C to 150°C
  • Status: Active product
  • Manufacturer: Littelfuse Inc.
  • Standard Package: 3,000 pcs
