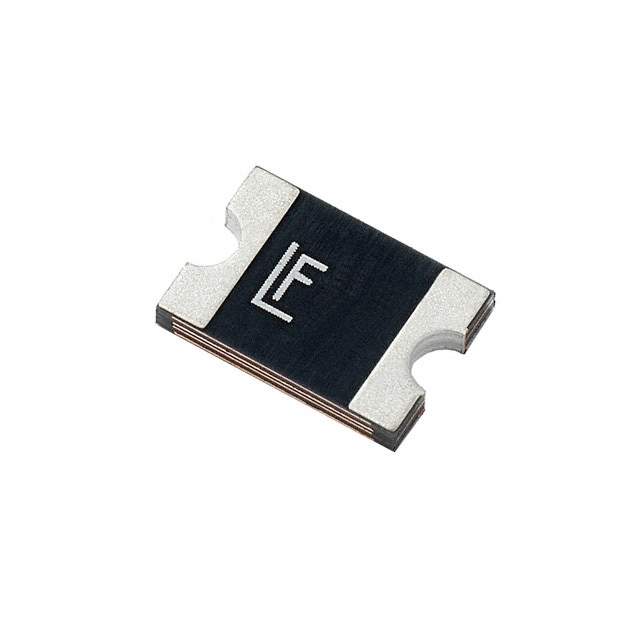

2920L200/24DR Real Image
Same model may have multiple batches, images only for reference.

2920L200/24DR

Part No 2920L200/24DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESETTABLE 24V 2A SMD 2920
Datasheet
2920L200/24DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 24V
Current - Max 40A
Current - Hold (Ih) (Max) 2A
Current - Trip (It) 4A
Time to Trip 5s
Resistance - Initial (Ri) (Min) 50 mOhm
Resistance - Post Trip (R1) (Max) 125 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.289" L x 0.202" W (7.35mm x 5.12mm)
Thickness (Max) 0.049" (1.25mm)
Approvals cURus, TUV
Win Source Part Number 102793-2920L200/24DR
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Consumer Electronics, Automotive
Ultra Librarian 3D Model Ultra Librarian 2920L200/24DR CAD Model

Description

Product Overview

The 2920L200/24DR is a highly reliable resettable fuse designed for a wide range of electronic applications. This PolySwitch device provides overcurrent protection with a holding current of 2.0 A and a maximum voltage of 24V DC.

Features and Benefits

  • Low resistance in the tripped state
  • Fast time to trip, enhancing protection
  • Compact and efficient design
  • Resettable after fault clearance, reducing maintenance costs

Applications

  • Power distribution systems
  • Consumer electronics
  • Telecommunication devices
  • Automotive circuits
