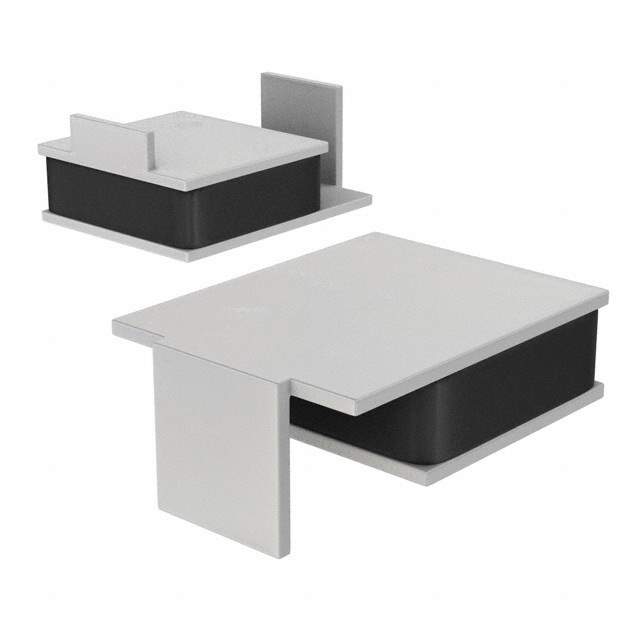

250S130DR Real Image
Same model may have multiple batches, images only for reference.

250S130DR

Part No 250S130DR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 0.13A(hold) 0.26A(trip) 250V 3A 1.2W 4s 4Ohm SMD Solder Pad 9.4 X 7.4 X 3.7mm T/R / PTC RESET 250/60V SMD 130MA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V (250V Int)
Current - Max 3A
Current - Hold (Ih) (Max) 130mA
Current - Trip (It) 260mA
Time to Trip 4s
Resistance - Initial (Ri) (Min) 4 Ohm
Resistance - Post Trip (R1) (Max) 20 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.370" L x 0.291" W (9.40mm x 7.40mm)
Thickness (Max) 0.146" (3.70mm)
Approvals cURus, TUV
Win Source Part Number 1003429-250S130DR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 250S
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 250S130DR CAD Model

Description

The 1003429-250S130DR is a polymeric circuit protection device manufactured by Littelfuse Inc.

  • Description: Designed to protect electronic circuits from overcurrent and overvoltage conditions.
  • Maximum Voltage Rating: 60V
  • Maximum Current Rating: 3A
  • Popularity: 52 pct.
  • Supply and Demand Status: Balance
