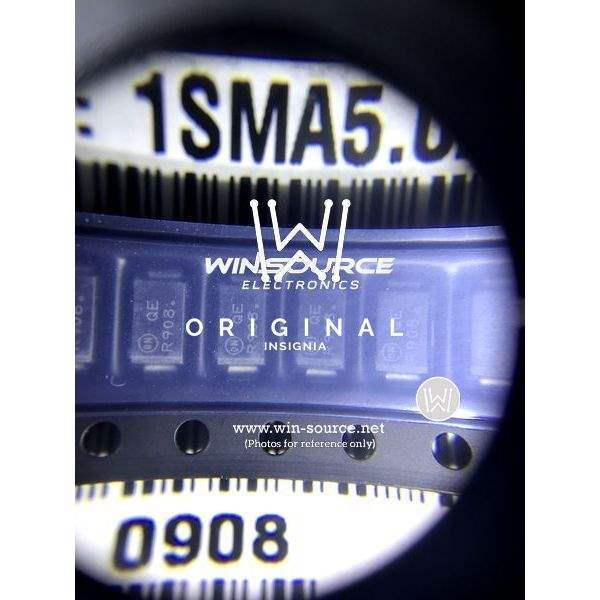

1SMA5.0AT3G Littelfuse Inc. 1SMA5.0AT3G Real Image 1SMA5.0AT3G real image
Same model may have multiple batches, images only for reference.
1SMA5.0AT3G Littelfuse Inc. 1SMA5.0AT3G Real Image 1SMA5.0AT3G real image
1SMA5.0AT3G Littelfuse Inc. 1SMA5.0AT3G Real Image 1SMA5.0AT3G real image
Same model may have multiple batches, images only for reference.

1SMA5.0AT3G

Part No 1SMA5.0AT3G
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 5VWM 9.2VC SMA / TVS Diode Single Uni-Dir 5V 400W Automotive 2-Pin SMA T/R
Datasheet
1SMA5.0AT3G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Packaging Reel - TR
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V
Minimum Breakdown Voltage 6.4V
Max Clamping Voltage 9.2V
Peak Pulse Current(Ippm) 43.5A
Power Dissipation - Pd 400W
Applications Automotive
Capacitance @ Frequency 2.035nF @ 1MHz
Temperature Range - Operating -65°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SMA
Win Source Part Number 1002550-1SMA5.0AT3G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name 1SMA5.0A
ECCN EAR99
Country of Origin Vietnam
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian 1SMA5.0AT3G CAD Model

Description

The Littelfuse Inc. 1002550-1SMA5.0AT3G is a high-quality zener electronic component that is designed for automotive applications.

  • Mounting Type: Surface Mount (SMD)
  • Package Size: SMA
  • Stand-off Voltage (Vwm): 5V
  • Minimum Breakdown Voltage: 6.4V
  • Maximum Clamping Voltage: 9.2V
  • Peak Pulse Current (Ippm): 43.5A
  • Power Dissipation - Pd: 400W
  • Supply and Demand Status: Balanced
  • Part Usage: Common-used
