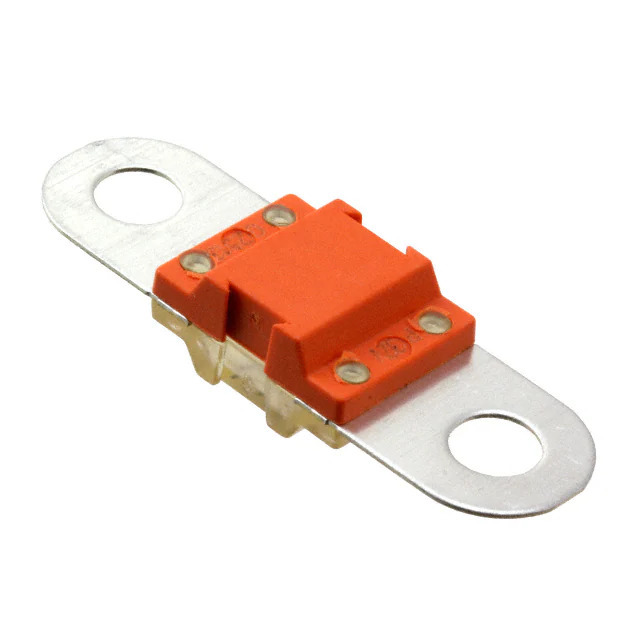

142.5631.5302 Littelfuse Inc.
Same model may have multiple batches, images only for reference.

142.5631.5302

Part No 142.5631.5302
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 30A 58VDC AUTO LINK / 30 A AC 58 V DC Fuse Automotive Bolt Mount Auto Link
Datasheet
142.5631.5302 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series BF1
Package Bulk
Product Status Active
Mounting Type Bolt Mount
Fuse Type Automotive
Current Rating (Amps) 30 A
Voltage Rating - DC 58 V
Response Time Slow Blow
Package / Case Auto Link
Breaking Capacity @ Rated Voltage 1kA
Melting I²t 5100
Approval Agency -
Color Orange
Size / Dimension 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm)
DC Cold Resistance 0.0027 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361576-142.5631.5302
Ultra Librarian 3D Model Ultra Librarian 142.5631.5302 CAD Model

Description

The Littelfuse Inc. BF1 series automotive fuse is a reliable circuit protection solution.

  • Current Rating: 30A
  • Voltage Rating: 58V DC
  • Response Time: Slow Blow
  • Breaking Capacity: 1kA
  • Melting I²t: 5100
  • Mounting Type: Bolt Mounting
  • Size: 0.630" L x 0.472" W x 0.323" H (16.00mm x 12.00mm x 8.20mm)
  • Color: Orange
