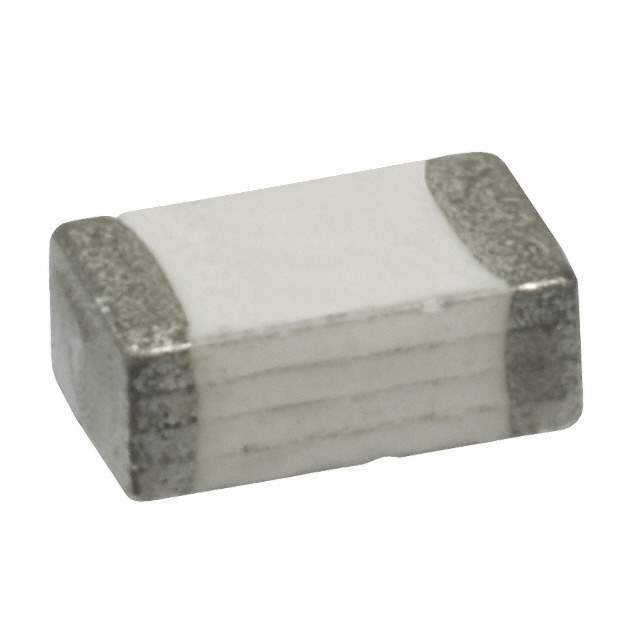

1206SFS100F/63-2 Real Image
Same model may have multiple batches, images only for reference.

1206SFS100F/63-2

Part No 1206SFS100F/63-2
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MOUNT 1A 63VDC 1206
Datasheet
1206SFS100F/63-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Littelfuse Inc.
Series SFS
Packaging Reel package
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 1A
Voltage Rating - DC 63V
Response Time Slow
Package 1206 (3216 Metric)
Mounting SMD
Breaking Capacity @ Rated Voltage 50A
Melting I2t 0.11
Approvals UL
Operating Temperature Range -55°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
Resistance 0.36 Ohm
Win Source Part Number 760281-1206SFS100F/63-2
Popularity Medium
Supply and Demand Status Balance
Family Name 1206SFS
Introduction Date November 09, 2015
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 1206SFS100F/63-2 CAD Model

Description

The Littelfuse Inc. SFS series is a board mount (cartridge style excluded) 1A slow response fuse with a voltage rating of 63V DC.

  • Current Rating: 1A
  • Voltage Rating: 63V DC
  • Breaking Capacity @ Rated Voltage: 50A
  • Melting I2t: 0.11
  • UL Approved: Yes
  • Resistance: 0.36 Ohm
  • Series: SFS
  • Package: 1206 (3216 Metric)
  • Operating Temperature Range: -55°C to 125°C
  • Packaging: Reel
  • Dimension: 0.126" L x 0.063" W x 0.038" H (3.20mm x 1.60mm x 0.97mm)
