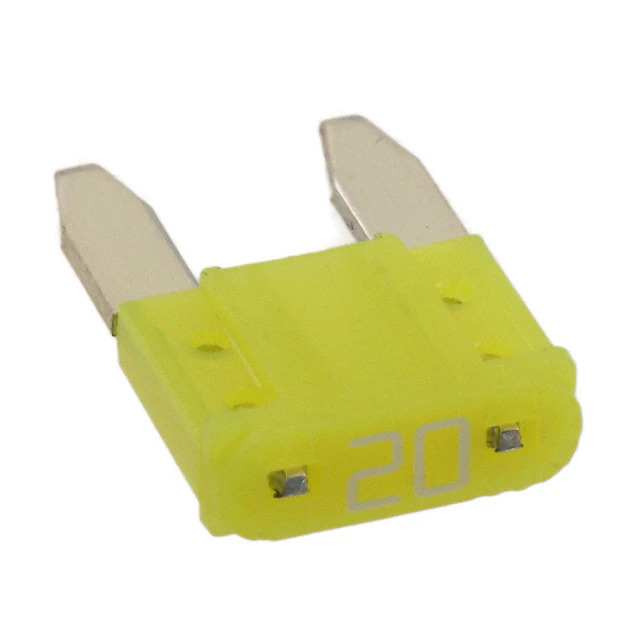

0997020.WXN Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0997020.WXN

Part No 0997020.WXN
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 20A 58VDC BLADE MINI / 20 A AC 58 V DC Fuse Automotive Requires Holder Blade, Miniature
Datasheet
0997020.WXN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series MINI® 997
Package Bulk
Product Status Active
Mounting Type Requires Holder
Fuse Type Automotive
Current Rating (Amps) 20 A
Voltage Rating - DC 58 V
Response Time Fast Blow
Package / Case Blade, Miniature
Breaking Capacity @ Rated Voltage 1kA
Melting I²t 380
Approval Agency -
Temperature Range - Operating -40°C ~ 125°C
Color Yellow
Size / Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 0.00321 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361537-0997020.WXN
Ultra Librarian 3D Model Ultra Librarian 0997020.WXN CAD Model

Description

The 1361537-0997020.WXN is a blade miniature fuse manufactured by Littelfuse Inc.

  • Series: MINI® 997
  • Package Size: 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
  • Current Rating: 20 A
  • Voltage Rating: 58 V DC
  • Application: Automotive Circuit Protection
  • Response Time: Fast Blow
  • Breaking Capacity: 1kA @ rated voltage
  • DC Cold Resistance: 0.00321 Ohms
