Same model may have multiple batches, images only for reference.

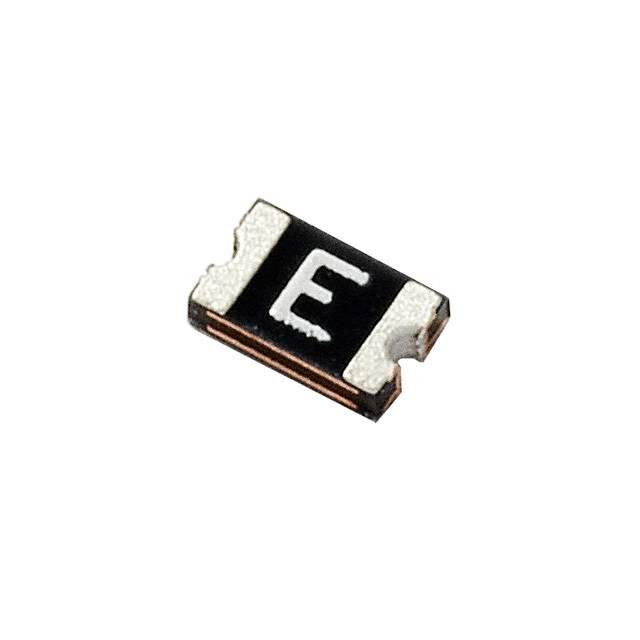

0805L110SLYR Real Image
Same model may have multiple batches, images only for reference.

0805L110SLYR

Part No 0805L110SLYR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 1.1A 0805 / POLYFUSE Resettable PTCs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 50A
Current - Hold (Ih) (Maximum) 1.1A
Current - Trip (It) 1.8A
Time to Trip 300ms
Resistance - Initial (Ri) (Min) 30 mOhms
Resistance - Post Trip (R1) (Maximum) 130 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), Concave
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Maximum) 0.030" (0.75mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801672-0805L110SLYR
Ultra Librarian 3D Model Ultra Librarian 0805L110SLYR CAD Model

Description

The 0805L110SLYR is a polymeric electronic component manufactured by Littelfuse Inc..

  • Voltage Max: 6V
  • Current Max: 50A
  • Current Trip: 1.8A
  • Time to Trip: 300ms
  • Temperature Range: -40°C to 85°C
  • Thickness: 0.030" (0.75mm)
  • Mounting: SMD
  • Resistance - Initial (Ri) (Min): 30 mOhms
  • Current Hold (Ih) (Maximum): 1.1A
  • Resistance - Post Trip (R1) (Maximum): 130 mOhms
  • Approvals: cURus, TUV
