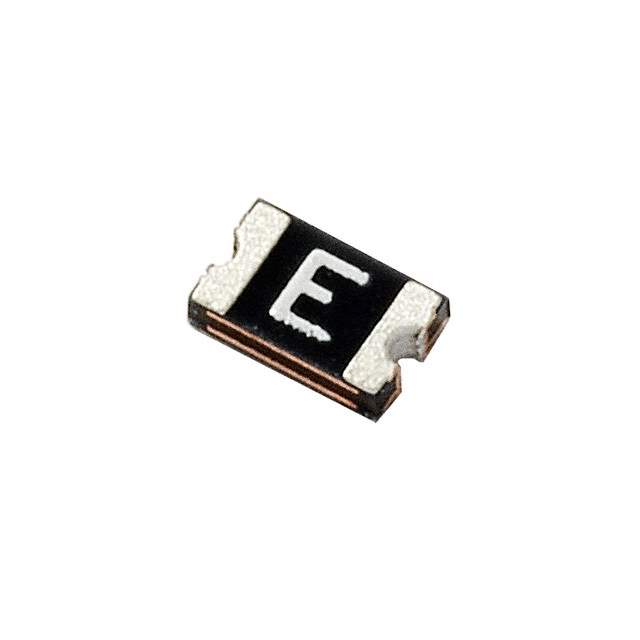

0805L075SLYR Real Image
Same model may have multiple batches, images only for reference.

0805L075SLYR

Part No 0805L075SLYR
Manufacturer Littelfuse Inc.
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 6V 750MA 0805 / POLYFUSE Resettable PTCs
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Reel
Type Polymeric
Voltage - Max 6V
Current - Max 50A
Current - Hold (Ih) (Maximum) 750mA
Current - Trip (It) 1.5A
Time to Trip 200ms
Resistance - Initial (Ri) (Min) 40 mOhms
Resistance - Post Trip (R1) (Maximum) 160 mOhms
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 0805 (2012 Metric), Concave
Dimension 0.083" L x 0.053" W (2.10mm x 1.35mm)
Thickness (Maximum) 0.030" (0.75mm)
Approvals cURus, TUV
Manufacturer Pack Quantity 4,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804660-0805L075SLYR
Ultra Librarian 3D Model Ultra Librarian 0805L075SLYR CAD Model

Description

The Littelfuse Inc. 0805L075SLYR is a polymeric fuse that has a maximum voltage rating of 6V and a maximum current rating of 50A.

  • Current Trip: 1.5A
  • Time to Trip: 200ms
  • Dimension: 0.083" L x 0.053" W
  • Mounting Style: SMD
  • Approvals: cURus, TUV
