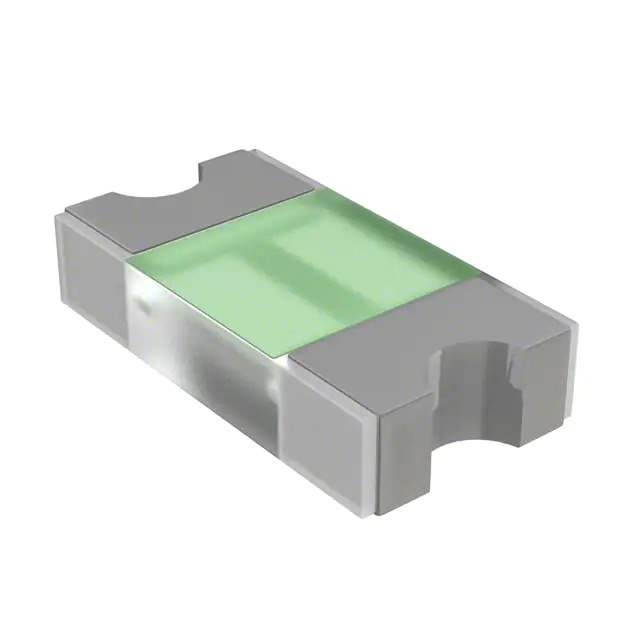

04941.25NR Real Image
Same model may have multiple batches, images only for reference.

04941.25NR

Part No 04941.25NR
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MT 1.25A 32VAC 32VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series 494
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.25 A
Voltage Rating - AC 32 V
Voltage Rating - DC 32 V
Response Time Fast Blow
Package / Case 0603 (1608 Metric), Concave
Breaking Capacity @ Rated Voltage 35A
Melting I2t 0.0158
Approval Agency CSA, UR
Temperature Range - Operating -55°C ~ 90°C
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.81mm)
DC Cold Resistance 0.053 Ohms
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
California Prop 65 Warning Information
Win Source Part Number 743416-04941.25NR
Ultra Librarian 3D Model Ultra Librarian 04941.25NR CAD Model

Description

The 743416-04941.25NR is a circuit protection fuse designed for board mount applications.

  • Voltage Rating: 32V AC and 32V DC
  • Fuse Type: Fast Blow
  • Breaking Capacity: 35A
  • Size: 0.063" L x 0.032" W (1.60mm x 0.81mm)
  • DC Cold Resistance: 0.053 Ohms
  • Package: 5,000 pcs
  • Operating Temperature: -55°C to 90°C
  • Approvals: CSA and UR
  • Manufacturer: Littelfuse Inc.
  • Status: Active
