Same model may have multiple batches, images only for reference.

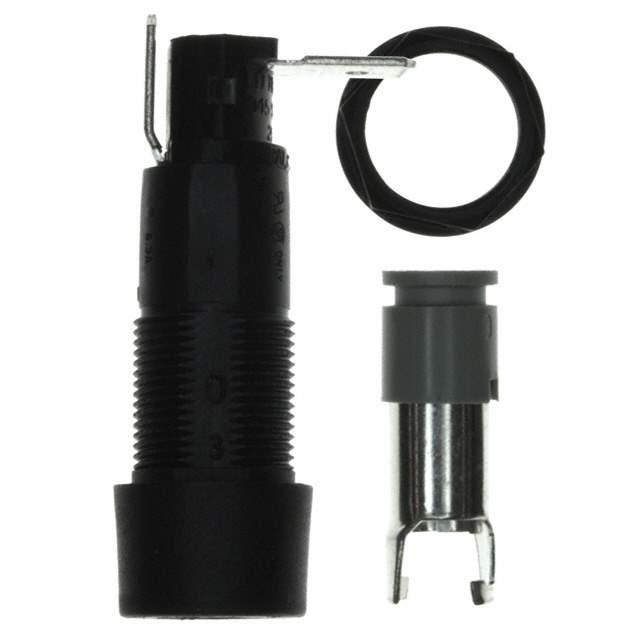

03453HS7H Real Image
Same model may have multiple batches, images only for reference.

03453HS7H

Part No 03453HS7H
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CART 250V 20A PNL MNT / Fuse Holder 20 A 250V 1 Circuit Cartridge Panel Mount
Datasheet
03453HS7H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series 345
Package Bulk
Mounting Type Panel Mount
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 20 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 250V
Termination Style Quick Connect - 0.250" (6.3mm)
Contact Material Copper Alloy
Contact Finish Tin
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Names F3120,3453HS7,-03453HS7H,03453HS7H-ND,H3453HS7
Standard Package 100
Win Source Part Number 1174684-03453HS7H
Ultra Librarian 3D Model Ultra Librarian 03453HS7H CAD Model

Description

The 03453HS7H is a fuse holder from Littelfuse Inc.

  • Mounting Type: Panel Mount
  • Termination Style: Quick Connect, 0.250" (6.3mm)
  • Contact Finish: Tin
  • Contact Material: Copper Alloy
  • Fuse Type: 3AG, 1/4" x 1-1/4" (SFE-20)
  • Fuse Size: 0.25" Dia x 1.26" L (6.35mm x 32mm)
  • Number of Circuits: 1
  • Voltage: 250V
  • Current Rating (Amps): 20A
  • Series: 345
  • Package: Bulk
  • Standard Package: 100
  • MSL Level: Not Applicable
  • HTSUS: 8538.90.8180
