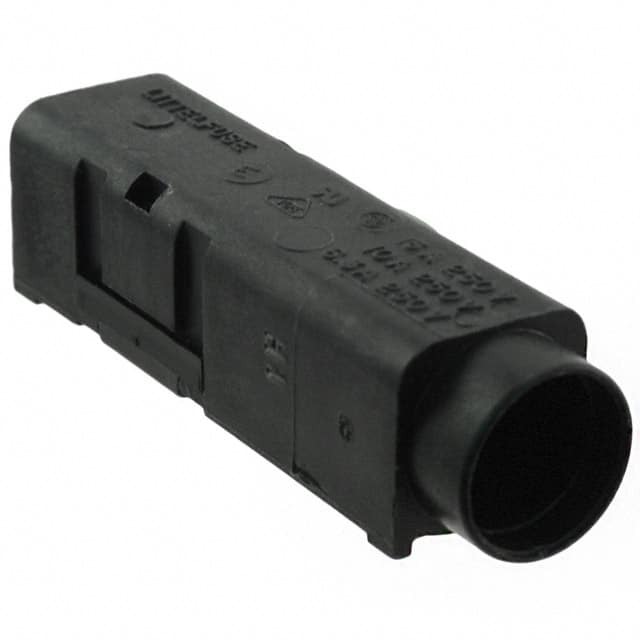

03450101HX010
Same model may have multiple batches, images only for reference.

03450101HX010

Part No 03450101HX010
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE HLDR CARTRIDGE 600V 16A PCB
Datasheet
03450101HX010 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Littelfuse Inc.
Series 345
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.25" Dia x 1.26" L (6.35mm x 32mm)
Current Rating (Amps) 16 A
For Use With/Related Products 3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Type Cartridge
Fuseholder Type Holder
Number of Circuits 1
Voltage 600V
Orientation Horizontal
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
California Prop 65 Warning Information
Win Source Part Number 904466-03450101HX010
Ultra Librarian 3D Model Ultra Librarian 03450101HX010 CAD Model

Description

The 834864 is a circuit protection fuseholder designed for use with 3AG and 1/4" x 1-1/4" (SFE-20) cartridge fuses.

  • Fuse Size: 3AG, 1/4" x 1-1/4" (SFE-20)
  • Termination Style: PC pin
  • Contact Finish: Tin
  • Contact Material: Brass
  • Voltage Rating: 600V
  • Mounting Type: Through-hole
  • Orientation: Horizontal
  • Series: 345
  • Manufacturer: Littelfuse Inc.
  • Package: Bulk package of 100 pieces
  • Current Rating: 16A
  • Application: Circuit Protection
  • Product Status: Active
