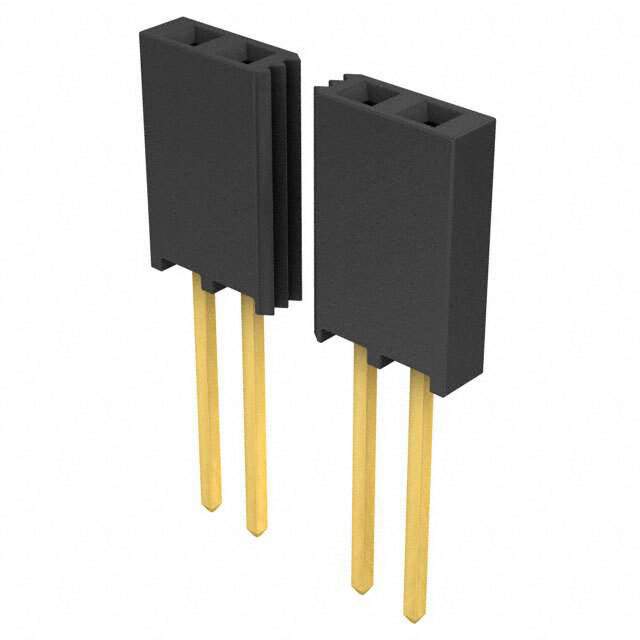

The Samtec Inc. SSQ series 21-position receptacle connector is a board-to-board or cable connector with a pitch of 0.100" (2.54mm).

• Positions: 21
• Connector Type: Receptacle
• Pitch: 0.100" (2.54mm)
• Fastening Type: Push-Pull
• Insulation Material: Liquid Crystal Polymer (LCP)
• Contact Material: Phosphor Bronze
• Contact Finish: Gold with a thickness of 20.0µin (0.51µm) for mating and 3.00µin (0.076µm) for post
• Voltage Rating: 465VAC and 655VDC
• Temperature Range: -55°C to 125°C
• Contact Shape: Square
• Contact Type: Forked
• Insulation Height: 0.335" (8.51mm)
• Contact Length (Post): 0.394" (10.00mm)
• Material Flammability Rating: UL94 V-0
• Mounting: Through-Hole Mounting
