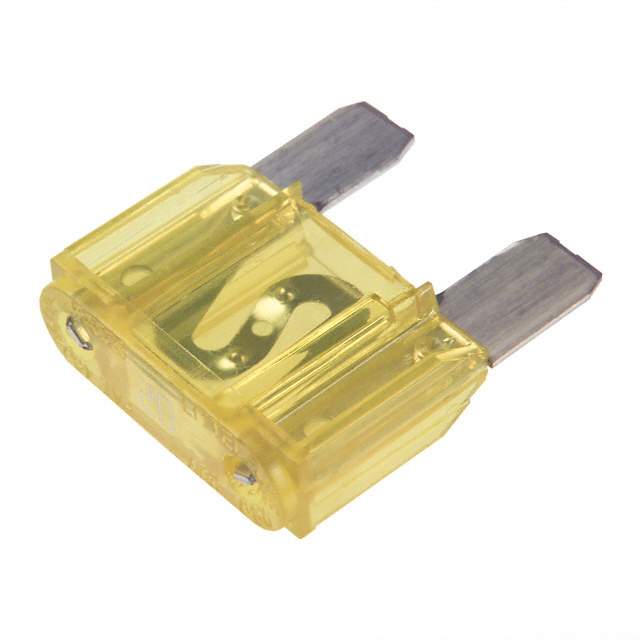

0299020.ZXNV Real Image
Same model may have multiple batches, images only for reference.

0299020.ZXNV

Part No 0299020.ZXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 20A 32VDC BLADE / 20 A AC 32 V DC Fuse Automotive Holder Blade, Max
Datasheet
0299020.ZXNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series MAXI®
Package Bulk
Mounting Type Holder
Fuse Type Automotive
Current Rating (Amps) 20 A
Voltage Rating - DC 32 V
Response Time Slow Blow
Package / Case Blade, Max
Breaking Capacity @ Rated Voltage 1kA
Melting I2t 1100
Temperature Range - Operating -40°C ~ 125°C
Color Yellow
Dimension 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm)
DC Cold Resistance 0.0031 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 0299020ZXOCR,F1035,0299020,0299020ZXNV,0299020.Z,-1024-0299020.ZXNV,0299020.,299020,0299020.ZXOCR
Standard Package 1,200
Win Source Part Number 1116787-0299020.ZXNV
Ultra Librarian 3D Model Ultra Librarian 0299020.ZXNV CAD Model

Description

The Littelfuse MAXI® 1116787-0299020.ZXNV fuse is an automotive slow blow fuse designed to protect circuits in vehicles.

  • Voltage Rating: 32V
  • Breaking Capacity: 1kA
  • Description: designed to provide reliable protection against short circuits and overloads
  • DC Cold Resistance: 0.0031 Ohms
  • Melting I2t: 1100
  • Package Type: Blade, Max
  • Standard Package: 1,200 fuses
  • Mounting Type: Holder
  • Operating Temperature Range: -40°C to 125°C
  • Dimensions: 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm)
  • Manufacturer: Littelfuse Inc.
