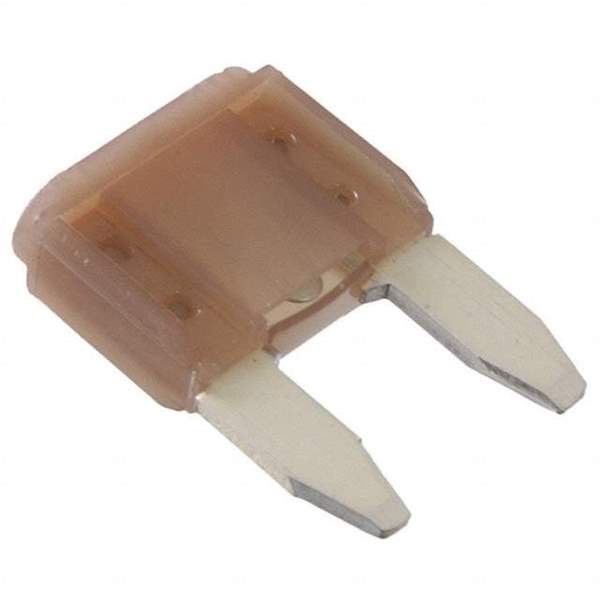

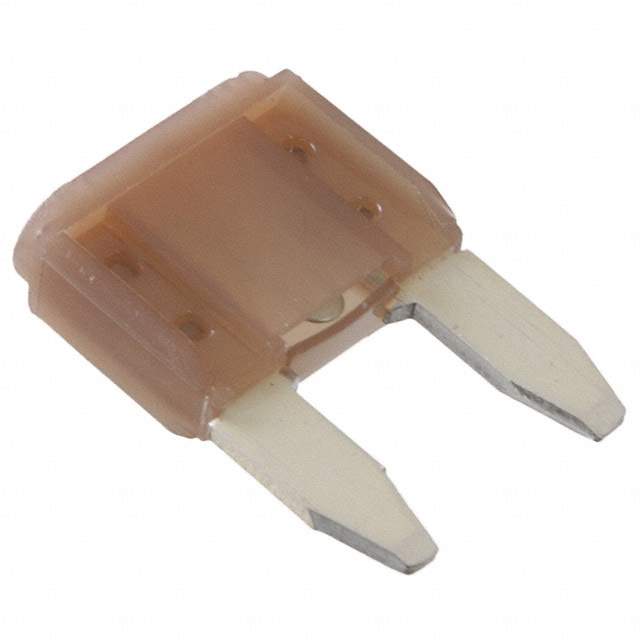

0297005.WXNV Real Image
Same model may have multiple batches, images only for reference.

0297005.WXNV

Part No 0297005.WXNV
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE AUTO 5A 32VDC BLADE MINI / MINI® BLADE FUSE RATED 32V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Fuse Type Automotive
Current Rating (Amps) 5A
Voltage Rating - DC 32V
Response Time Fast Blow
Manufacturer Package Blade, Miniature
Mounting Style Holder
Breaking Capacity at Rated Voltage 1kA
Melting I2t 25
Temperature Range - Operating -40°C ~ 125°C
Color Tan
Dimension 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm)
DC Cold Resistance 0.01775 Ohms
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803729-0297005.WXNV
Ultra Librarian 3D Model Ultra Librarian 0297005.WXNV CAD Model

Description

The Littelfuse Inc. 803729-0297005.WXNV is a bulk holder mounting style automotive fuse.

  • Voltage Rating: 32V
  • Response Time: Fast Blow
  • Melting I2t: 25
  • DC Cold Resistance: 0.01775 Ohms
  • Breaking Capacity @ Rated Voltage: 1kA
  • Current Rating: 5A
  • Package: Blade, Miniature
  • Popularity: Medium
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
