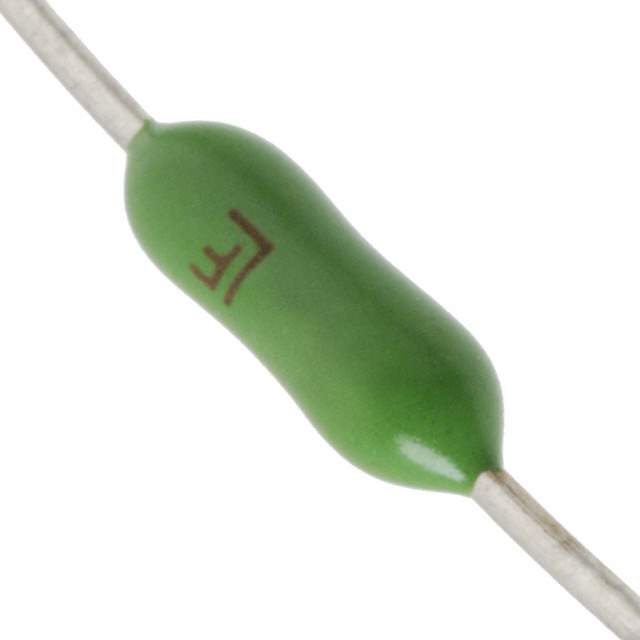

0251010.NAT1JL Real Image
Same model may have multiple batches, images only for reference.

0251010.NAT1JL

Part No 0251010.NAT1JL
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BOARD MNT 10A 125VAC AXIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Tape & Box (TB)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 10A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast Blow
Manufacturer Package Axial
Mounting Style Through Hole
Breaking Capacity at Rated Voltage 50A AC, 300A DC
Melting I2t 25.5
Approvals CSA, cURus, TUV
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.110" Dia x 0.280" L (2.80mm x 7.11mm)
DC Cold Resistance 0.0072 Ohms
Manufacturer Pack Quantity 5,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801372-0251010.NAT1JL
Ultra Librarian 3D Model Ultra Librarian 0251010.NAT1JL CAD Model

Description

The 10A Board Mount Fuse is a circuit protection component from Littelfuse Inc.

  • Approvals: CSA, cURus, TUV
  • Temperature Range: -55°C to 125°C
  • Mounting: Axial
  • Breaking Capacity (AC): 50A
  • Breaking Capacity (DC): 300A
  • DC Cold Resistance: 0.0072 Ohms
  • Melting - I2t: 25.5
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 125V
  • Response Time: Fast Blow
  • Manufacturer Pack Quantity: 5,000
  • MSL Level: 1 (Unlimited)
