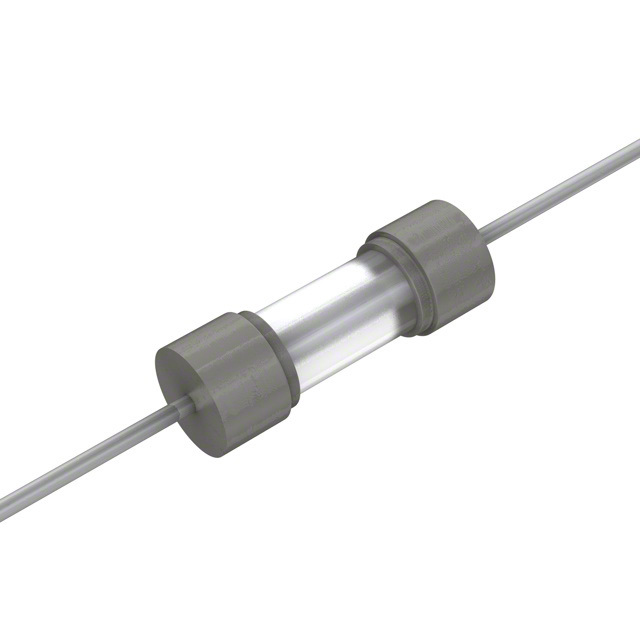

0224003.DRT1P Littelfuse Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0224003.DRT1P

Part No 0224003.DRT1P
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE GLASS 3A 250VAC 125VDC 2AG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Through Hole
Fuse Type Cartridge, Glass
Current Rating (Amps) 3 A
Voltage Rating - AC 250 V
Voltage Rating - DC 125 V
Response Time Fast Blow
Case / Package 2AG, 5mm x 15mm (Axial)
Breaking Capacity @ Rated Voltage 100A AC, 10kA DC
Melting I2t 4.62
Approval Agency CE, CSA, PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Size / Dimension 0.185\
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1603256-0224003.DRT1P
Ultra Librarian 3D Model Ultra Librarian 0224003.DRT1P CAD Model
