0215005.MXF11P

Part No 0215005.MXF11P
Manufacturer Littelfuse Inc.
Catalog Fuses

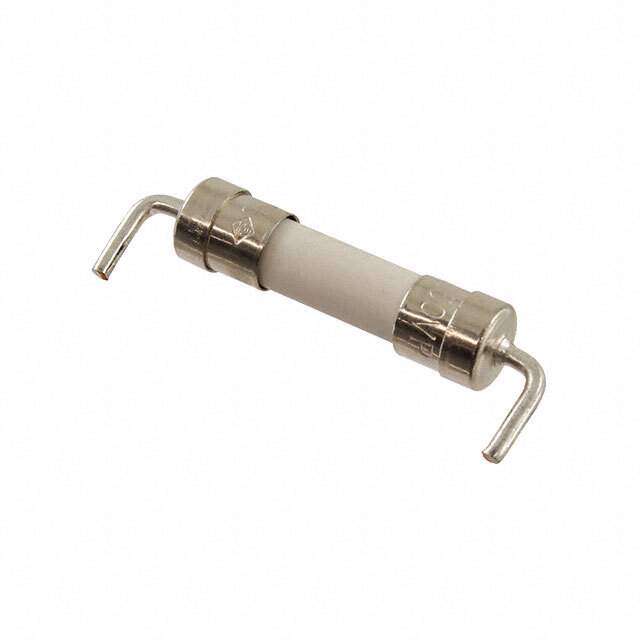

Description FUSE CERAMIC 5A 250VAC 5X20MM / 5 A 250 V AC DC Fuse Cartridge, Ceramic Through Hole Radial Bend Cylinder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Littelfuse Inc.
Series 215
Package Bulk
Mounting Type Through Hole
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 5 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case Radial Bend Cylinder
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 66.095
Approval Agency CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE
Temperature Range - Operating -55°C ~ 125°C
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0153 Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.10.0040
Other Names 215005.MXF11P,215005MXF11P,0215005MXF11P,-0215005.MXF11P
Standard Package 1,000
Win Source Part Number 1033548-0215005.MXF11P
Ultra Librarian 3D Model Ultra Librarian 0215005.MXF11P CAD Model

Description

This electronic component is a cartridge ceramic fuse that is designed to provide reliable and efficient circuit protection. It has a Win Source Part Number of 1033548-0215005.MXF11P and belongs to the Series category. It falls under the Circuit Protection>Fuses category and is designed to protect electronic devices from overcurrent and short circuit conditions. With its slow blow response time, this fuse is ideal for use in applications that require a high degree of protection from power surges and spikes. It is built to last and is designed to withstand extreme temperatures and harsh environments, making it a great choice for industrial and commercial applications as well.
