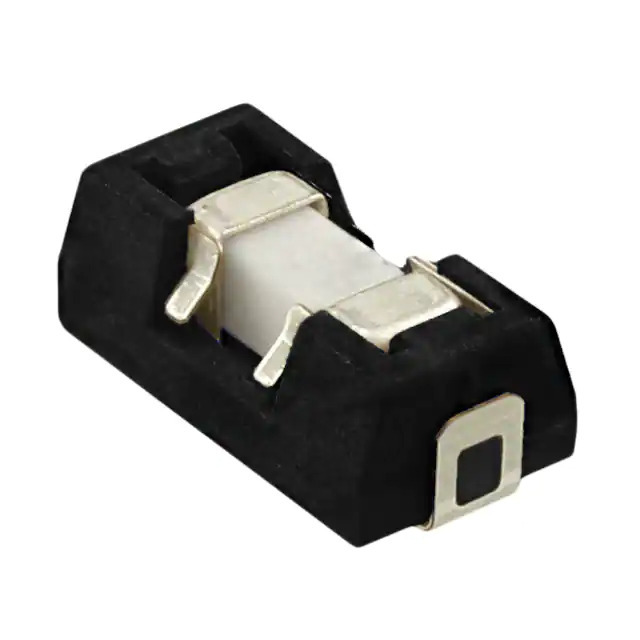

0154001.DRTL Littelfuse Inc.
Same model may have multiple batches, images only for reference.

0154001.DRTL

Part No 0154001.DRTL
Manufacturer Littelfuse Inc.
Catalog Fuses
Description FUSE BRD MNT 1A 125VAC/VDC 2SMD / 1 A 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Requires Holder, Surface Mount 2-SMD, Square End Block with Holder
Datasheet
0154001.DRTL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuses
Mfr Littelfuse Inc.
Series OMNI-BLOK® 154TL
Package Tape & Reel
Product Status Active
Mounting Type Requires Holder, Surface Mount
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1 A
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Response Time Slow Blow
Package / Case 2-SMD, Square End Block with Holder
Breaking Capacity @ Rated Voltage 50A
Melting I²t 1.98
Approval Agency PSE, UL
Temperature Range - Operating -55°C ~ 125°C
Color -
Size / Dimension 0.383" L x 0.198" W x 0.150" H (9.73mm x 5.03mm x 3.81mm)
DC Cold Resistance 0.225 Ohms
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Win Source Part Number 1361421-0154001.DRTL
Ultra Librarian 3D Model Ultra Librarian 0154001.DRTL CAD Model

Description

The 154TL is a circuit protection fuse from Littelfuse Inc.

  • Series: OMNI-BLOK series
  • Operating Temperature: -55°C to 125°C
  • Current Rating: 1A
  • Mounting Type: Surface Mount
  • Voltage Rating: 125V AC/DC
  • Response Time: Slow Blow
  • Breaking Capacity: 50A @ rated voltage
  • Size: 0.383" L x 0.198" W x 0.150" H
  • Approvals: PSE and UL
