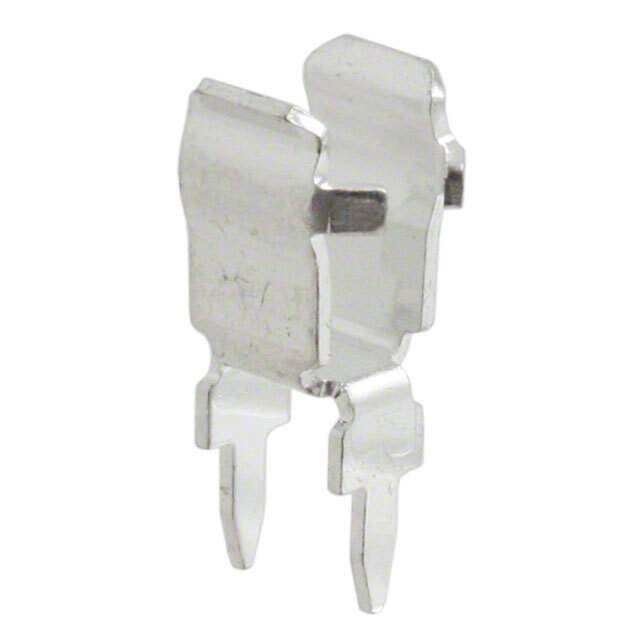

Part No 01000020Z
Manufacturer Littelfuse Inc.
Catalog Fuseholders
Description FUSE CLIP CARTRIDGE 600V 20A PCB / Fuse Clip 20 A 600V 1 Circuit Cartridge Through Hole
Datasheet
01000020Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuseholders
Mfr Littelfuse Inc.
Series 100
Package Bulk
Mounting Type Through Hole
Fuse Size 0.197" Dia (5mm)
Current Rating (Amps) 20 A
For Use With/Related Products 5mm Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Voltage 600V
Orientation Horizontal
Termination Style PC Pin
Contact Material Phosphorus Bronze
Contact Finish Tin
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Other Names 100020,F4225,-01000020Z
Standard Package 1,000
Win Source Part Number 1129555-01000020Z
Ultra Librarian 3D Model Ultra Librarian 01000020Z CAD Model

Description

The 1129555-01000020Z is a fuseholder from Littelfuse Inc. that is designed to work with 5mm diameter fuses.

  • Fuse Diameter: 5mm
  • Fuseholder Style: clip
  • Number of Circuits: one
  • Current Rating: 20 amps
  • Voltage Rating: 600 volts
  • Contact Material: phosphorus bronze
  • Contact Finish: tin
  • Mounting: through-hole
  • Packaging: bulk
  • Application: circuit protection applications
