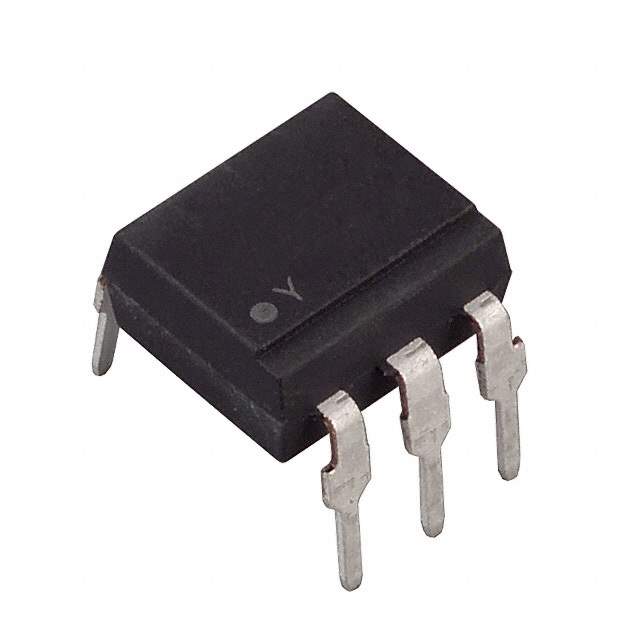

MOC3063 Lite-On Inc. MOC3063 Real Image MOC3063 real image3539 MOC3063 Real Image MOC3063 real image 2 MOC3063 label picture 3
Same model may have multiple batches, images only for reference.
MOC3063 Lite-On Inc. MOC3063 Real Image MOC3063 real image3539 MOC3063 Real Image MOC3063 real image 2 MOC3063 label picture 3
MOC3063 Lite-On Inc. MOC3063 Real Image MOC3063 real image3539 MOC3063 Real Image MOC3063 real image 2 MOC3063 label picture 3
Same model may have multiple batches, images only for reference.

MOC3063

Part No MOC3063
Manufacturer Lite-On Inc.
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 5KV TRIAC 6DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Lite-On Inc.
Standard Package 65
Category Isolators
Family Optoisolators - Triac SCR Output
Packaging Tube
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600V
Static dV/dt (Min) 1kV/µs
Current - LED Trigger (Ift) (Max) 5mA
Current - Hold (Ih) 400µA (Typ)
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50mA
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 6-DIP (0.300" 7.62mm)
Manufacturer Device Package 6-DIP
Approvals CSA FIMKO UL
Catalog MOC3063-V Series
Win Source Part Number 059302-MOC3063
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Motor Drive & Control, Consumer Electronics
Family Name MOC3063
Introduction Date September 12, 2001
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian MOC3063 CAD Model

Description

The Lite-On Inc. MOC3063-V Series is an Optoisolator with Triac SCR Output.

  • Forward Current (If): 50mA
  • Forward Voltage (Vf): 1.2V
  • Voltage - Off State: 600V
  • Voltage - Isolation: 5000Vrms
  • Current - LED Trigger (Ift) (Max): 5mA
  • Current - Hold (Ih): 400µA (Typ)
  • Approvals: CSA, FIMKO, and UL
  • Static dV/dt (Min): 1kV/µs
  • Operating Temperature Range: -40°C to 100°C
  • Package: 6-DIP
  • Applications: Industrial, Motor Drive & Control, and Consumer Electronics
