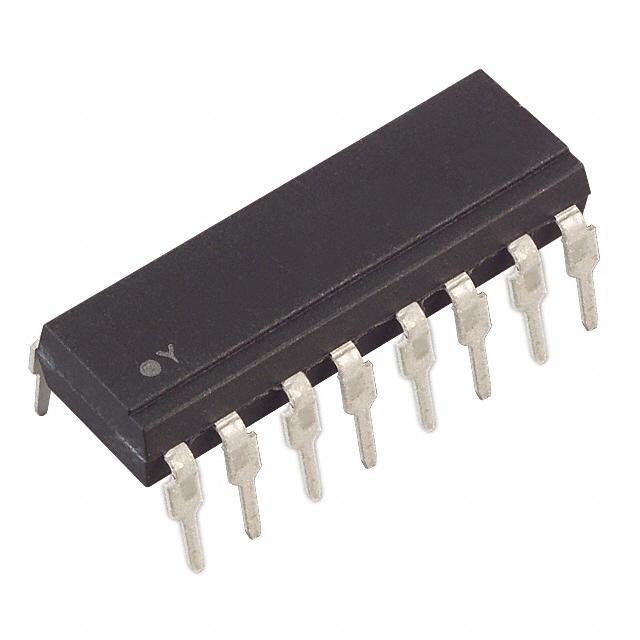

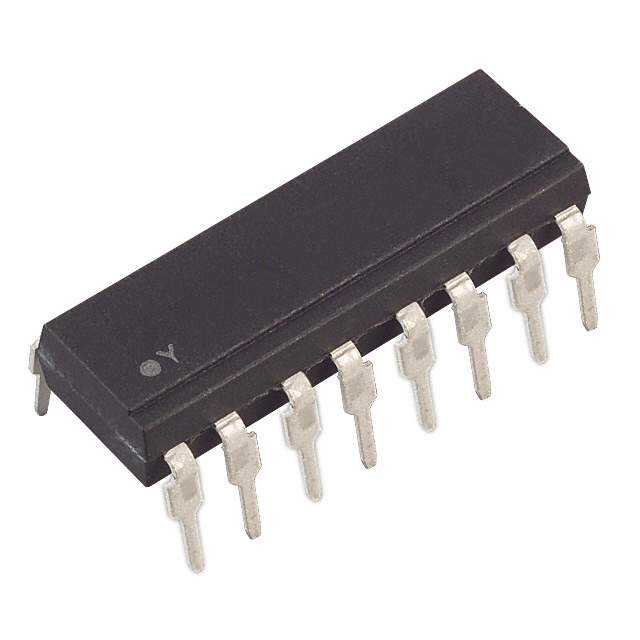

LTV-847 Lite-On Inc. LTV-847 Real Image LTV-847 real image LTV-847 real image2206 LTV-847 Real Image
Same model may have multiple batches, images only for reference.
LTV-847 Lite-On Inc. LTV-847 Real Image LTV-847 real image LTV-847 real image2206 LTV-847 Real Image
LTV-847 Lite-On Inc. LTV-847 Real Image LTV-847 real image LTV-847 real image2206 LTV-847 Real Image
Same model may have multiple batches, images only for reference.

LTV-847

Part No LTV-847
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLTR 5KV 4CH TRANS 16-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Tube/Rail
Status Active
Number of Channels 4
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 50% @ 5mA
Maximum DC Current Transfer Ratio 600% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 110°C
Mounting Through Hole
Case / Package 16-DIP
Win Source Part Number 020745-LTV-847
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian LTV-847 CAD Model

Description

The LTV-847 is an isolator from Lite-On Inc.

  • Mounting Type: Through-hole
  • Package: 16-DIP
  • Output Type: Transistor
  • Input Type: DC
  • Channels: 4
  • Forward Voltage: 1.2V
  • Vce Saturation (max): 200mV
  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 50% @ 5mA
  • Maximum DC Current Transfer Ratio: 600% @ 5mA
  • Switching Turn-on and Turn-off Time: Not specified
  • Rise Time: 4µs
  • Fall Time: 3µs
  • Maximum Output Voltage: 35V
  • Channel Output Current: 50mA
  • Continuous Forward Current (max): 50mA
  • Quantity per Package: 25
