LTV-817-C Lite-On Inc. LTV-817-C label picture
Same model may have multiple batches, images only for reference.
LTV-817-C Lite-On Inc. LTV-817-C label picture
LTV-817-C Lite-On Inc. LTV-817-C label picture
Same model may have multiple batches, images only for reference.

LTV-817-C

Part No LTV-817-C
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 200% @ 5mA
Maximum DC Current Transfer Ratio 400% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 110°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 1064449-LTV-817-C
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name LTV817
Introduction Date January 19, 2000
ECCN EAR99
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian LTV-817-C CAD Model

Description

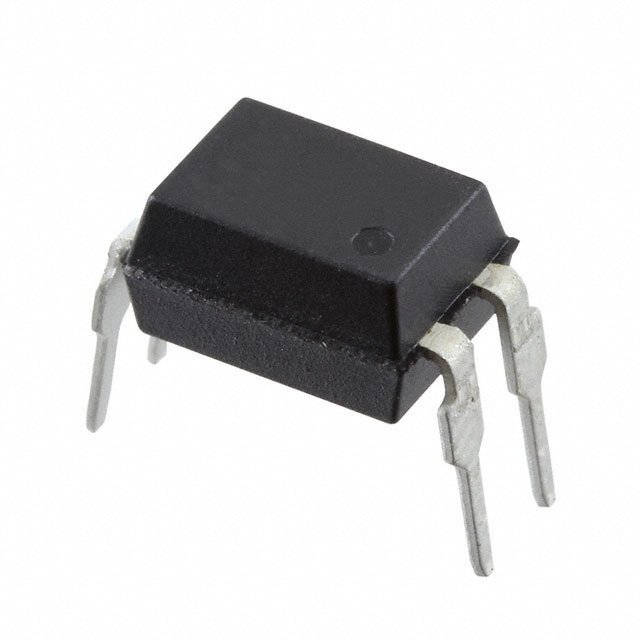

The LTV817 optocoupler is a through-hole device that provides DC input isolation with transistor output.

  • DC Current Transfer Ratio (Min): 200% @ 5mA
  • DC Current Transfer Ratio (Max): 400% @ 5mA
  • Isolation Voltage: 5000Vrms
  • Family: LTV817
  • Forward Voltage: 1.2V
  • Vce Saturation (Max): 200mV
  • Switching Turn-On Time: 4μs
  • Switching Turn-Off Time: 3μs
  • Case/Package: 4-DIP
  • Output Voltage (Max): 35V
  • Channel Output Current: 50mA
  • Continuous Forward Current-Max: 50mA
  • Status: Active
  • Operating Temperature: -30°C to 110°C
