Same model may have multiple batches, images only for reference.

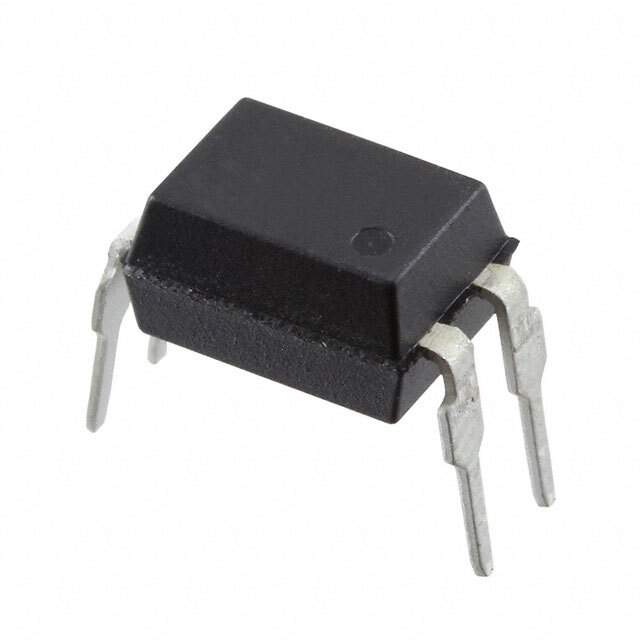

LTV-817-A Real Image
Same model may have multiple batches, images only for reference.

LTV-817-A

Part No LTV-817-A
Manufacturer Lite-On Inc.
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISOLATR 5KV TRANSISTOR 4-DIP
Datasheet
LTV-817-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Lite-On Inc.
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 160% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 35V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 110°C
Mounting Through Hole
Case / Package 4-DIP
Win Source Part Number 072705-LTV-817-A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian LTV-817-A CAD Model

Description

The Lite-On Inc. 072705-LTV-817-A is an isolator with a 4-DIP case/package.

  • Output Type: Transistor output
  • Forward Voltage: 1.2V
  • Input Type: DC
  • Isolation Voltage: 5000Vrms
  • Operating Temperature: -30°C to 110°C
  • Current Transfer Ratio: 80% @ 5mA (min), 160% @ 5mA (max)
  • Output Voltage: 35V (max)
  • Output Current: 50mA
  • Continuous Forward Current-max: 50mA
  • Quantity per Package: 100
