Same model may have multiple batches, images only for reference.

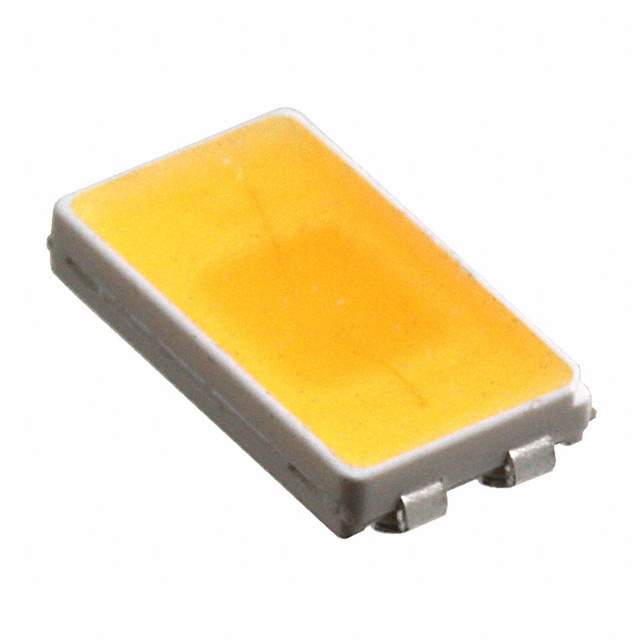

LTW-5630AZL50 Real Image
Same model may have multiple batches, images only for reference.

LTW-5630AZL50

Part No LTW-5630AZL50
Manufacturer Lite-On Inc.
Catalog LED Lighting - White
Description LED AZL COOL WHITE 5000K 4SMD / LED Lighting series White, Cool 5000K 3.13V 120mA 120° 4-SMD, Flat Lead Exposed Pad
Datasheet
LTW-5630AZL50 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - White
Mfr Lite-On Inc.
Series AZL
Package Tape & Reel
Color White, Cool
CCT (K) 5000K
Flux @ 25°C, Current - Test 55lm (46lm ~ 64lm)
Current - Test 120mA
Voltage - Forward (Vf) (Typ) 3.13V
Lumens/Watt @ Current - Test 146 lm/W
CRI (Color Rendering Index) 80
Current - Max 200mA
Viewing Angle 120°
Mounting SMD (SMT)
Package / Case 4-SMD, Flat Lead Exposed Pad
Supplier Device Package 5630
Dimension 0.209" L x 0.118" W (5.30mm x 3.00mm)
Height - Seated (Max) 0.043" (1.10mm)
Thermal Resistance of Package 15°C/W
Base Product Number LTW-5630
Other Names 160-2095-1,160-2095-2,Q8270058,160-2095-6
Standard Package 3,000
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240270-LTW-5630AZL50
Ultra Librarian 3D Model Ultra Librarian LTW-5630AZL50 CAD Model

Description

The LTW-5630AZL50 from Lite-On Inc. is a white, cool LED light that is surface mount.

  • Viewing Angle: 120°
  • Current - Test: 200mA
  • Voltage - Forward (Vf) (Typ): 3.13V
  • Current - Test: 120mA
  • CCT (K): 5000K
  • CRI (Color Rendering Index): 80
  • Flux @ 25°C, Current - Test: 55lm (46lm ~ 64lm)
  • Lumens/Watt @ Current - Test: 146 lm/W
  • Thermal Resistance of Package: 15°C/W
  • Height - Seated (Max): 0.043" (1.10mm)
  • Mounting Type: Surface Mount
  • Package / Case: 4-SMD, Flat Lead Exposed Pad
  • Operating Temperature: -40°C to 85°C
  • REACH: Unaffected
  • ECCN: EAR99
