Same model may have multiple batches, images only for reference.

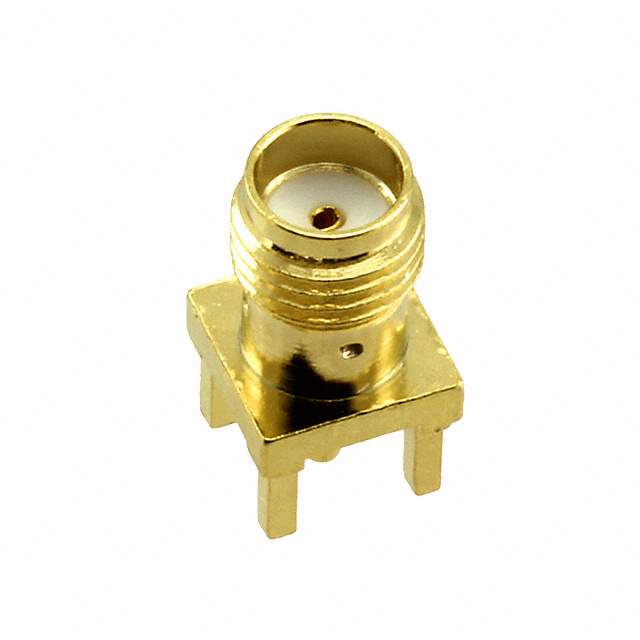

CONSMA001-G Real Image
Same model may have multiple batches, images only for reference.

CONSMA001-G

Part No CONSMA001-G
Manufacturer Linx Technologies Inc.
Catalog Coaxial Connectors (RF)
Description CONN SMA RCPT STR 50 OHM PCB / SMA Connector Receptacle, Female Socket 50Ohm Through Hole Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Linx Technologies Inc.
Package Bulk
Connector Style SMA
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Through Hole
Fastening Type Threaded
Frequency - Max 12.4 GHz
Number of Ports 1
Housing Color Gold
Center Contact Material Beryllium Copper
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 500
Base Product Number CONSMA001
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 100
Win Source Part Number 1031549-CONSMA001-G
Ultra Librarian 3D Model Ultra Librarian CONSMA001-G CAD Model

Description

The Linx Technologies Inc. 1031549-CONSMA001-G is a female socket SMA connector that operates in the frequency range of DC to 12.4 GHz.

  • Frequency Range: DC to 12.4 GHz
  • Application: RF and wireless
  • Impedance: 50Ohm
  • Mating Cycle: 500
  • Connector Type: Receptacle
  • Fastening Type: Threaded
  • Termination: Solder
  • Mounting: Through Hole
  • Housing Color: Gold
  • Body Material: Brass
  • Center Contact Material: Beryllium Copper
  • Center Contact Plating: Gold
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4010
