The LTM9011CY-14#PBF is a high-performance, ultra-low noise, 14-bit, 125Msps analog-to-digital converter (ADC) from Linear Technology, a renowned leader in high-end analog integrated circuits. This ADC is part of Linear Technology's LTM® series, which is designed to deliver exceptional performance in a compact package, making it an ideal choice for demanding applications that require high-speed data acquisition with minimal distortion and noise.

Key Features

• High Resolution: With its 14-bit resolution, the LTM9011CY-14#PBF offers fine quantization levels, ensuring detailed and accurate digital representation of the analog input signal.
• Fast Sampling Rate: The device boasts a sampling rate of 125Msps (mega samples per second), providing the ability to capture high-frequency signals without aliasing.
• Low Noise Design: The ADC features an ultra-low noise performance, which is critical for applications such as medical imaging, instrumentation, and communication systems where signal integrity is paramount.
• Integrated Features: It includes features such as a digital filter and a digital down-converter, which simplify system design and reduce the need for external components.
• Power Efficiency: The LTM9011CY-14#PBF is designed for power-sensitive applications, offering a low power dissipation that helps to maintain energy efficiency in portable and battery-powered devices.

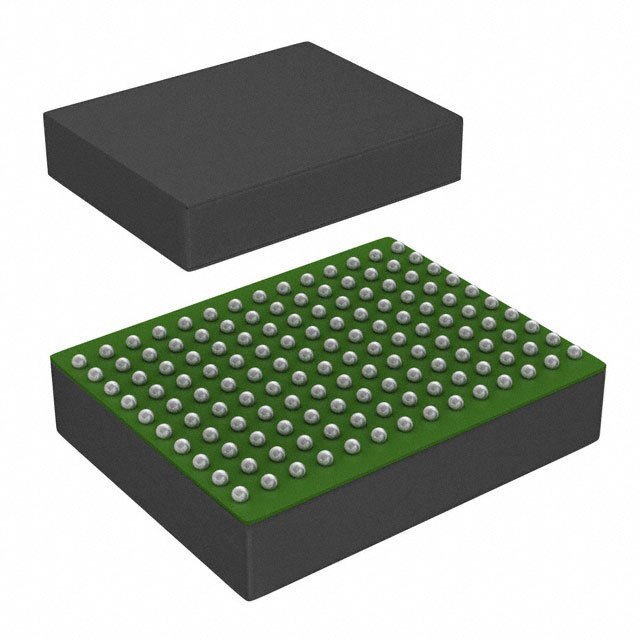

• Compact Package: The device comes in a compact CY package, which saves board space and is suitable for space-constrained applications.

Applications

The LTM9011CY-14#PBF is versatile and can be used in a wide range of applications, including:

• Wireless and Wired Broadband Communication
• Radar and Satellite Communication Systems
• Medical Imaging Equipment
• High-speed Data Acquisition Systems
• Test and Measurement Instrumentation

Quality and Reliability

Linear Technology is committed to high standards of quality and reliability, and the LTM9011CY-14#PBF is no exception. It is manufactured with the industry's best practices, ensuring consistent performance and durability for the most challenging applications.
