Products specifications

Categories RF/IF and RFID
Manufacturer Linear Technology
Packaging Tray
Function IF to Baseband Receiver
Frequency 0Hz ~ 300MHz
Secondary Attributes 14-Bit ADC
Package 108-LGA
Manufacturer Package 108-LGA (15x11.25)
Win Source Part Number 784656-LTM9002CV-LA#PBF
Popularity Medium
Supply and Demand Status Limited
Family Name LTM9002
Introduction Date May 22, 2009
ECCN 5A991.b
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LTM9002CV-LA#PBF CAD Model

Description

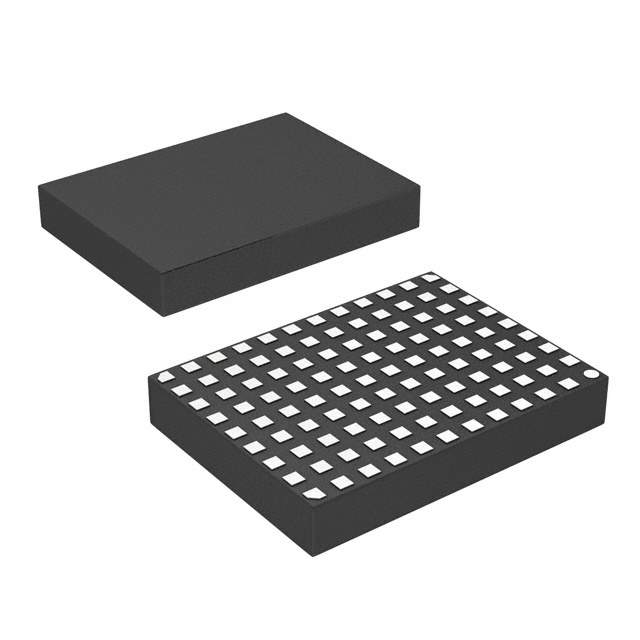

The LTM9002CV-LA#PBF is a high-performance, integrated radio frequency-to-digital μModule® receiver from Linear Technology. Designed to offer a complete system solution for wireless communication applications, this product integrates a wide range of features to simplify design and enhance functionality in a compact form factor.

Key Features

  • Integrated System: The LTM9002CV-LA#PBF combines a high-performance mixer, filter, and analog-to-digital converter (ADC) in one package, streamlining the design process and reducing the footprint on the PCB.
  • High Frequency Range: It operates over a broad frequency range, making it suitable for various wireless applications, including cellular, LTE, and more.
  • High Dynamic Range: With its excellent dynamic range, the device can handle a wide variety of signal strengths, ensuring clear and reliable signal processing.
  • Low Power Consumption: The energy-efficient design of the LTM9002CV-LA#PBF minimizes power usage, which is critical for battery-powered devices and systems concerned with thermal management.
  • Easy Integration: The μModule® form factor allows for easy integration into existing designs, reducing development time and speeding up time-to-market.

Applications

The LTM9002CV-LA#PBF is ideal for a variety of applications where high-quality RF-to-digital conversion is required. It is particularly well-suited for:

  • Wireless infrastructure
  • Remote radio heads
  • Software-defined radios
  • Test and measurement equipment

Technical Specifications

The LTM9002CV-LA#PBF features a 14-bit, 125Msps ADC and supports an IF range of 70MHz to 450MHz. It is packaged in a compact LGA package that is designed for optimal performance in harsh RF environments. The product operates within an industrial temperature range and is lead-free and RoHS compliant, ensuring it meets current environmental standards.

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTM9002CV-LA#PBF is no exception. Each module is rigorously tested to ensure it meets the high standards expected from Linear Technology products, providing designers with a reliable and robust solution for their RF-to-digital conversion needs.
