Product Overview: LTM4604AEV#PBF

The LTM4604AEV#PBF is a high-efficiency, µModule (micromodule) regulator designed by Linear Technology, which is now part of Analog Devices. This advanced power management IC integrates a step-down DC/DC converter capable of delivering up to 4A of continuous output current. It operates over a wide input voltage range from 4V to 20V, making it versatile for a variety of applications.

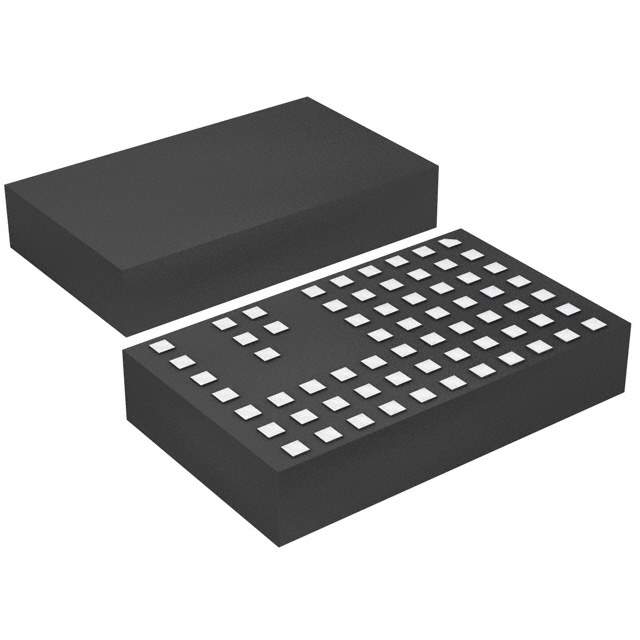

The LTM4604AEV#PBF is a complete system-in-package (SiP) power solution that combines a DC/DC controller, power switches, inductor, and all the supporting components in a compact LGA package. This integration simplifies design and reduces board space requirements, making it ideal for space-constrained applications such as embedded systems, telecommunications, networking equipment, and industrial applications.

Key Features

• High Efficiency: Its high-efficiency design ensures minimal heat generation and improved system reliability.
• Wide Input Voltage Range: With an input range of 4V to 20V, it can accommodate various power sources and conditions.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 5V, providing flexibility for different voltage requirements.
• Integrated Components: Includes an internal inductor and power switches, which reduces external part count and simplifies the design process.
• Compact Package: The LGA package is optimized for space-constrained applications and allows for efficient heat dissipation.
• Protection Features: It includes overvoltage, overcurrent, and over-temperature protection for safe operation under abnormal conditions.

Applications

• Embedded Systems
• Telecommunications Infrastructure
• Networking Equipment
• Industrial Systems
• Portable Devices

The LTM4604AEV#PBF is an exemplary solution for designers looking for a high-performance, easy-to-use power management solution. Its integrated approach and robust feature set make it a reliable choice for managing power in complex electronic systems.
