Product Overview: LTM2892CY-I#PBF

The LTM2892CY-I#PBF is a high-performance isolated μModule (micromodule) transceiver from Linear Technology, designed for safe and efficient communication in electrically noisy environments. This device provides a complete, galvanically isolated USB transceiver interface, which is crucial in applications where the ground loop is broken to maintain signal integrity and protect against harmful ground potential differences.

Key Features

• Galvanic Isolation: The LTM2892CY-I#PBF offers robust galvanic isolation, rated at 2,500V RMS for 1 minute, which is essential for breaking ground loops and preventing noise currents on data lines.
• Integrated Power: It includes an integrated, isolated DC/DC converter, providing isolated power to the transceiver and eliminating the need for separate isolated power supplies.
• High-Speed USB: This device supports full-speed (12Mbps) USB communication, making it suitable for a wide range of applications that require reliable data transfer.

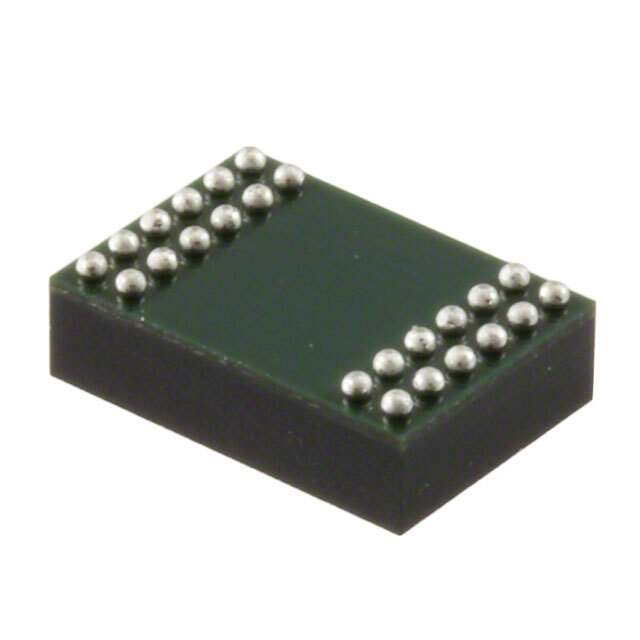

• Compact Design: The LTM2892CY-I#PBF comes in a compact surface-mount BGA package, which saves space on the printed circuit board and simplifies the design process.
• Temperature Range: It operates over an industrial temperature range from -40°C to 85°C, ensuring performance in harsh environmental conditions.

Applications

The LTM2892CY-I#PBF is ideal for use in industrial, medical, and automotive systems where data integrity and isolation are of paramount importance. It is well-suited for:

• Isolated USB hubs, bridges, and data acquisition systems
• Ground loop elimination in test and measurement equipment
• Noise-immune communication in electrically noisy environments

Quality and Reliability

Linear Technology is known for its commitment to quality, and the LTM2892CY-I#PBF is no exception. It is designed to meet stringent industry standards for reliability and performance, ensuring long-term operation in critical systems.
