LTC6820IUD#TRPBF - High-Speed Isolated SPI Interface

The LTC6820IUD#TRPBF is a robust, high-speed SPI (Serial Peripheral Interface) communication interface device designed by Linear Technology, now part of Analog Devices, Inc. This innovative component provides a seamless and reliable isolated interface for data transfer between devices in a system, ensuring signal integrity even in challenging electrical environments.

Key Features:

• High-Speed Operation: The LTC6820IUD#TRPBF supports SPI data rates up to 1 Mbps, making it suitable for applications requiring fast data transfer.
• Isolation: With integrated signal isolation, this device ensures that data signals are protected from noise and ground loops, which is critical for maintaining data integrity in industrial and automotive environments.
• Wide Temperature Range: The device operates reliably over an industrial temperature range from -40°C to 125°C, ensuring performance in extreme conditions.
• Low Power Consumption: It is designed for efficiency, with low quiescent current consumption, making it ideal for power-sensitive applications.
• Flexible Power Supply: The LTC6820IUD#TRPBF can be powered from a single 3V to 5.5V supply, providing design flexibility.

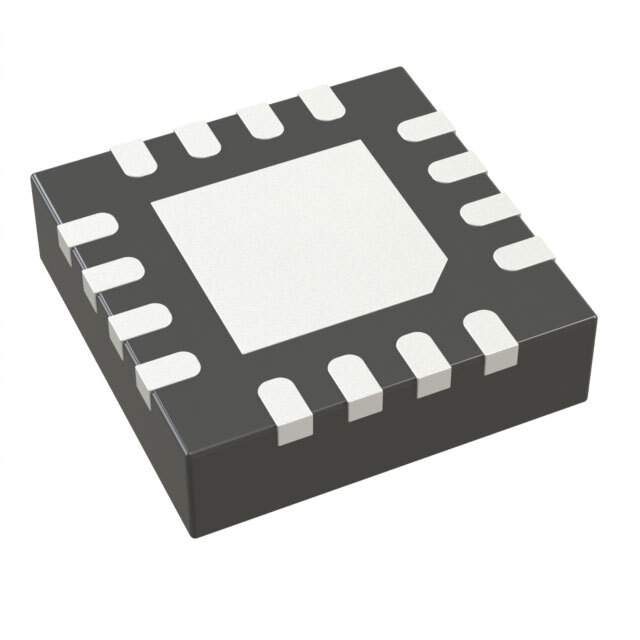

• Robust Packaging: Housed in a compact QFN package, it is suitable for space-constrained applications while providing robustness and reliability.

Applications:

The LTC6820IUD#TRPBF is well-suited for a wide range of applications that require reliable data communication with electrical isolation, such as:

• Industrial Control Systems
• Automotive Control Systems
• Medical Equipment
• Isolated Data Acquisition Systems
• Test and Measurement Equipment

This product is available in a tape and reel package, denoted by the "#TRPBF" suffix, which is compatible with automated manufacturing processes, ensuring ease of integration into production lines.

Overall, the LTC6820IUD#TRPBF from Linear Technology represents a high-performance solution for designers looking to implement isolated SPI interfaces in their systems, with the assurance of quality and reliability that comes with the Linear Technology brand.
